Schneider Electric XVR08B03 Harmony XVR Prewired Rotating Mirror Beacon, 84 mm, Green, 24V AC/DC
Schneider Electric XVR08B03 Harmony XVR Prewired Rotating Mirror Beacon, 84 mm, Green, 24V AC/DC
- MPN: XVR08B03
- PPN: SCH-XVR08B03
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$237.25/ EA
Description

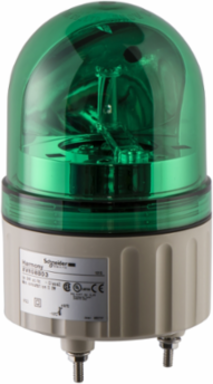

The Schneider Electric Harmony XVR Prewired Rotating Mirror Beacon is an essential component for effective signaling in a variety of automation and control applications. With a vibrant green color and powered by 24V AC/DC, this 84 mm beacon is designed to provide high visibility in both indoor and outdoor environments. Its rotating mirror design enhances the light output, making it particularly suitable for alert systems where clarity and recognition are crucial. This beacon not only ensures reliable performance but also seamlessly integrates into existing pilot device setups, making it a versatile choice for enhancing safety and communication across numerous industrial settings.
Specifications
- Voltage
- 24 V AC/DC (Supply Voltage Limits: 19-30 V DC, 21.6-26.4 V AC)
- Flashing Frequency
- 2.3 Hz
- Ambient Air Temperature for Operation
- -10 to 50 °C (14 to 122 °F)

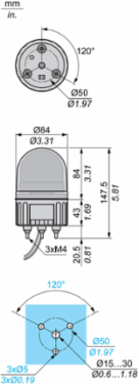

- Mounting Diameter
- 84 mm (3.31 in)
- Cad Overall Depth
- 84 mm
- Mounting
- By 3 M4 screws
- Material
- ABS (body), PC (globe)
- Electrical Shock Protection Class
- Class II IEC 61140
- Standards
- IEC 61000-6-4, IEC 61000-6-2
- Sound Signalling
- without
- Range of Product
- Harmony XVR
- Product Or Component Type
- Prewired rotating mirror beacon
- China RoHS Regulation
- X
- Environmental Disclosure
- ENVPEP1402018EN
- Reach Regulation
- Contains Substances of Very High Concern
- Net Weight
- 0.3 kg (0.66 lb)
Current Consumption125 mA
Rated Impulse Withstand Voltage0.8 kV
Ambient Air Temperature for Storage-35 to 70 °C (-31 to 158 °F)
Cad Overall Width84 mm
Cable Length500 mm (19.69 in)
Wire Size Range0.83 mm² (AWG 18)
IP Degree of ProtectionIP65 IEC 60529 with accessory, IP23 IEC 60529
Product CertificationsUL
Protective TreatmentTC
MarkingCE
Device Short NameXVR
RoHS Exemption InformationYes
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1402018EN
Sustainable Offer StatusGreen Premium product
ColorGreen
