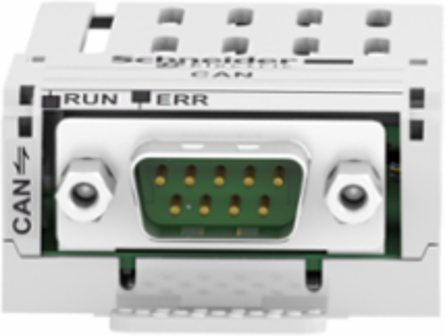

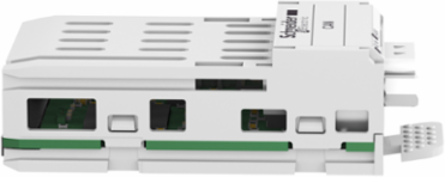

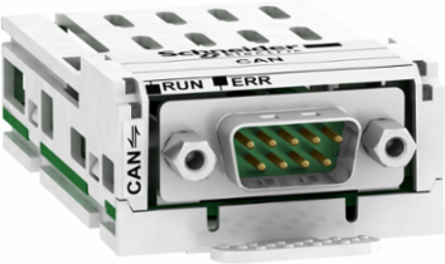

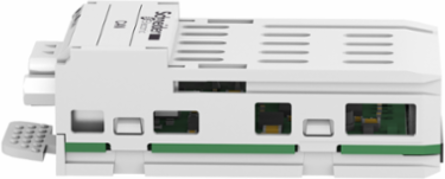

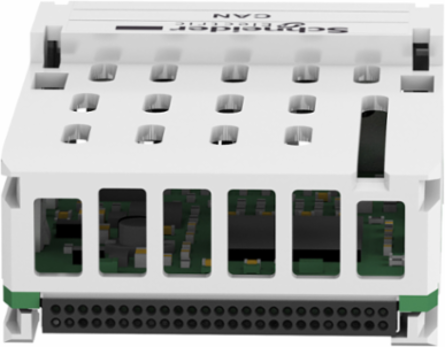

Schneider Electric VW3A3618 CANopen Communication Module, 1 Male SUB-D 9 Connector, Green Premium

MPN: VW3A3618
PPN: SCH-VW3A3618

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$223.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Schneider Electric Altivar CANopen communication module has 1 x 9-way female SUB-D connector. It offers 10/100Mbps speeds and an embedded HTTP server. This communication module enables integration of your drive in your CANopen D-Sub 9 process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar 32, Altivar Machine ATV320, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Lexium 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, United States

Communications & Management Attributes

Communication Port Protocol	CANopen, CANmotion

Important Information Attributes

Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Electrical Connection	1 male connector SUB-D 9, CANopen, CANmotion
Product Or Component Type	communication module
Returnability	Yes
Pep Code	ENVPEP2010018EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8517620090

Local Publishable Date	2026-02-24
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Altivar
Sustainable Packaging	No
Accessory / Separate Part Category	communication accessories
Package Weight(Lbs)	73.000 g
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2010018EN
Packaging Made With Recycled Cardboard	No
Product Compatibility	Lexium 32M
Pep Code	ENVPEP2010018EN
