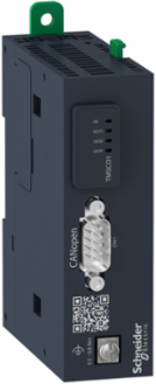

Schneider Electric TMSCO1 Smart Communication Module, Modicon M262, CANopen, 30mm Width, 100mm Height
- MPN: TMSCO1
- PPN: SCH-TMSCO1
CAD
$382.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This smart communication module for Modicon M262 logic/motion controllers is designed to provide 1 CANopen master access to the controllers. TMSCO1 smart communication module integrates M262 controllers in CANopen architectures, ensures communication with devices. It figures one CANopen port for CANopen master communication and supports up to 63 slaves. Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. CANopen link can be configured between 20kbps and 1Mbit/s and supports up to 63 slaves. It is possible to connect one CANopen smart communication modules on a logi/motion controller, the power supply is embedded on the communication bus. It measures 30mm width, 88mm depth, and 100mm height. It weighs 0.150kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This smart communication module is compatible with Modicon M262 logic/motion controllers. It is configured by EcoStruxure Machine Expert software. TMSCO1 smart communication module installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Mexico, Singapore |
|---|
| Depth | 88.3 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | CANopen |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Local Signalling | 1 LED (green) for PWR1 LED (green/red) for MOD STS, 1 LED (green) for CAN RUN1 LED (red) for CAN ERR |
| Number Of Module Per Plc | 1 maximum per logic controller, 1 maximum per motion controller |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output) |
| Certificate Agency | CE, cULus, RCM, EAC (pending), Achilles |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.19466, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 3.5825 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Use Carbon Footprint | 51.503 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electromagnetic Emission | conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBµV/m A30-230 kHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBµV/m A230-1000 MHz IEC 55011 |
| Product Or Component Type | smart communication module |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3 |
| Returnability | No |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 100 mm |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 55.317 |
| Package Weight(Lbs) | 252.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 418.13 |
| Air Pollution (M3) Operational Energy Use [B6] | 2216.7 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 622.11 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 584.6 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 3.5825 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 3.9198 |
| Materials For Recycling (Kg) Total Life Cycle | 0.1609 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 186.74 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.0179 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 947.15 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 897.83 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 1080.6 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1028.6 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 2.6563 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 3.1229 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 944.02 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 897.83 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 1.5795 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 131.88 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 130.8 |
| Water Pollution (M3) Manufacturing [A1-a3] | 435.53 |
| Water Pollution (M3) Operational Energy Use [B6] | 2125.2 |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz IEC 61000-4-4, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Vibration Resistance | 1 gn 8.4-200 Hz panel mounting3.5 mm 2-8.4 Hz symmetrical rail1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting |
| Carbon Footprint Of The Distribution Phase [A4] | 0.032256, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0047629 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 52 kg CO2 eq., 51.503 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Manufacturing Carbon Footprint | 3.5825 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1904005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Current Consumption | 50 mA 24 V |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M262 |
| Resistance To Electrostatic Discharge | 4 kV on contact IEC 61000-4-28 kV on air IEC 61000-4-2 |
| Services | maximum 63 slave nodes |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 55 kg CO2 eq. |
| Pep Code | ENVPEP1904005EN |
| Pep Verification Date | 2019-04-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | For adding a CANopen master network Equipped with a 9-way SUB-D connector to the M262 Controllers, at 1.2W 100% of the time for 10 years |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Recyclability Potential In % | 35 |
| Width Nominal | 30 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 2639.5 |
| Air Pollution (M3) Distribution [A4] | 1.3721 |
| Air Pollution (M3) End Of Life [C1-c4] | 3.1402 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 36.629 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 55.317 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 51.503 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 3.4823 |
| Net Use Of Fresh Water (M3) Total Life Cycle | 186.76 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 193.05 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 192.03 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 48.363 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 0.4362 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 51.02 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 133.46 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 130.8 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3.1229 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 45.241 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 0.4362 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.5795 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.0768 |
| Water Pollution (M3) Total Life Cycle | 2574.6 |
| Water Pollution (M3) Distribution [A4] | 5.3044 |
| Water Pollution (M3) End Of Life [C1-c4] | 7.8222 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation, -20-50 °C vertical installation-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1904005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2019-04-01 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 55.317 |
| Environmental Disclosure | ENVPEP1904005EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1904005EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | smart communication module |
|---|
| Range Of Product | Modicon M262 |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|
| ETIM 9 | EC001423 |
|---|
