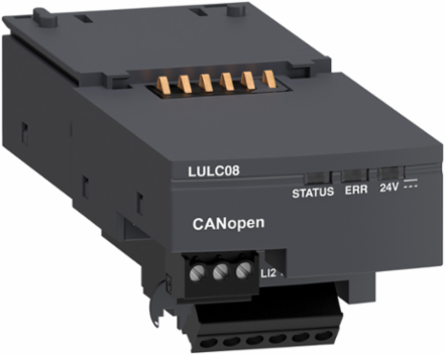

Schneider Electric LULC08 TeSys Ultra Communication Module, 24V DC, CANopen, IP20, 500mA
- MPN: LULC08
- PPN: SCH-LULC08
CAD
$747.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys U communication module for CANopen, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 9-point SUB-D male connector for connection to a CANopen network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs giving the status of the module (24V) and communication line (STATUS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Range Compatibility
- TeSys TeSys U LUB non reversing power base || TeSys TeSys U LU2B reversing power base
- Range
- TeSys
- Device Application
- communication
Product Or Component Typecommunication module
Product CompatibilityLUCA || LUCL || LUCD || LUCC || LUCM || LUCB
Device Short NameLUL
Complementary
- Addressing
- 1...127
- Associated Cable Type
- AWG 26...AWG 16
- Protection Type
- gL fuse 2 A
- Current Consumption
- 1.5 mA 24 V DC 20...28 V
- Connections - Terminals
- screw clamp terminals 1 0.14-1 mm²flexible without cable end || screw clamp terminals 1 0.14-1 mm²rigid without cable end || screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || screw clamp terminals 1 0.25-1 mm²flexible with cable end || screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
- Mounting Location
- front side
- [Us] Rated Supply Voltage
- 24 V DC
- Mounting Mode
- plug-in
- Switching Current Capacity
- 0.5 mA 24 V
- Local Signalling
- 3 LEDs front panel
- Tightening Torque
- 0.2-0.25 N.m 2.5 mm
Output Current<= 500 mA
Number Of Outputs2 dedicated to starter-controller coil operation || 1
Response Time10 ms +/- 30 % change to state 0 || 10 ms +/- 30 % change to state 1
Logic Inputpositive 24 V DC - 7 mA
Input Typeresistive
Function Availablecommunication module
Communication Port ProtocolCAN2.0A || CAN2.B
Physical Interface9-way SUB-D female
Bus TypeCANopen
Connection Pitch3.81 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 IEC 60529
StandardsDR 303-2 || CIADS-301 V4.02
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
