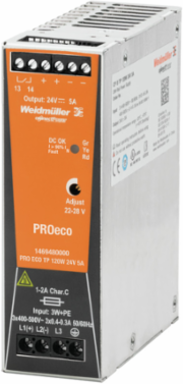

Weidmuller 1469480000 PRO ECO 120W 24V 5A
- MPN: 1469480000
- PPN: WDM-1469480000
CAD
$207.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Power supply, switch-mode power supply unit, 24 V
Documentation & Downloads
Specifications
Additional
- Output Voltage
- 24 V DC ± 1 %
- Output Power
- 120 W
- Input Frequency Range
- 47-63 Hz
- Inrush Current
- max. 40 A
- Protection against Inverse Voltage
- Yes
- Short-circuit Protection
- Yes
- Surge Protection
- Varistor
- Relay Contact Load
- max. 30 V DC / 1 A
- Depth
- 100 mm (3.937 inch)
- Weight
- 675 g
- Number of Input Terminals
- 3 (L/N/PE)
- Mounting Type
- Terminal rail TS 35
- Conductor Cross-section
- Flexible 0.5-2.5 mm², Rigid 0.5-6 mm², AWG 26-12
- Protection Degree
- IP20
- Operating Temperature
- -25 °C to 70 °C
- Insulation Voltage Input/Earth
- 2 kV
- Safety Standards
- EN 50178, EN 60204, VDE0106-101, IEC 60950-1, EN 61558-2-16, VDE0100-410 / DIN57100-410, SELV/PELV
- Noise Emission
- Class B (EN55032)
- Shock Resistance
- 15 g in all directions (IEC 60068-2-27)
- Pollution Severity
- 2
- Recommended Back-up Fuse
- 4 A / DI, safety fuse 6 A, Char. B, circuit breaker 3-5 A, Char. C, circuit breaker
- Electrical Machine Equipment Compliance
- According to EN 60204
- Protection Against Reverse Voltages
- 30-35 V DC
- Insulation Voltage
- Input/Output: 3 kV, Input/Earth: 2 kV, Output/Earth: 0.5 kV

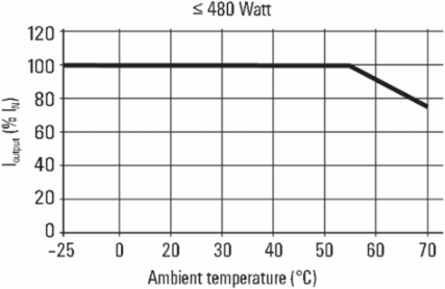

Output Current5 A @ 55 °C, 3.75 A @ 70 °C

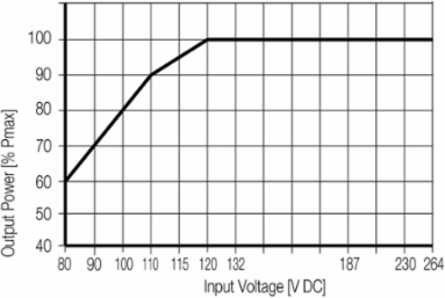

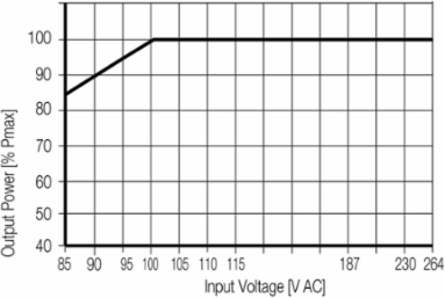

Input Voltage Range85-264 V AC, 80-370 V DC (Derating @ 120 V DC)
Efficiency87 %
Power Factor> 0.5 @ 230 V AC
Overload ProtectionYes
Overheating ProtectionYes
Ripple Voltage< 50 mVPP @ 24 V DC
Height125 mm (4.921 inch)
Width40 mm (1.575 inch)
Connection TypeScrew connection

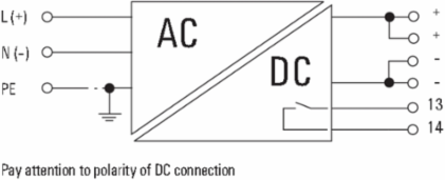

Number of Output Terminals6 (++, --, 13, 14)
MaterialMetal, corrosion resistant
Tightening Torque0.5-0.6 Nm
Storage Temperature-40 °C to 85 °C
Insulation Voltage Input/Output3 kV
Insulation Voltage Output/Earth0.5 kV
CertificationsCE, cULus (E258476), EAC, TUEV, RoHS Conform
Vibration Resistance1 g (EN 50178)
MTBF> 500,000 h (IEC 61709)
Parallel Connection OptionYes, max. 5
Capacitive LoadUnrestricted
Protection Against Dangerous Shock CurrentsAccording to VDE0106-101
AC Failure Bridging Time> 80 ms @ 230 V AC, > 20 ms @ 115 V AC
