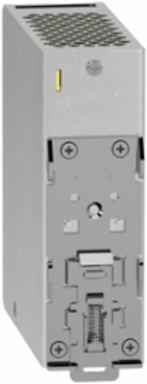

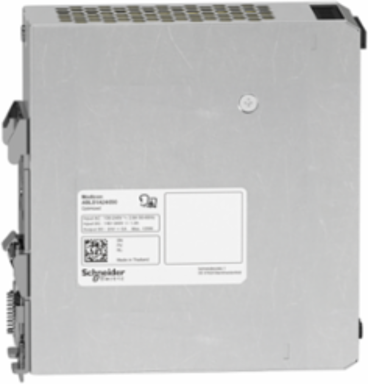

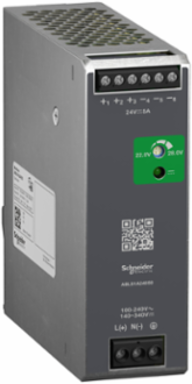

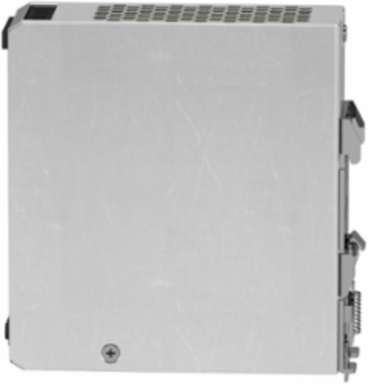

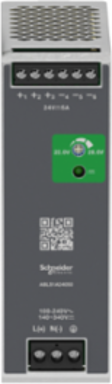

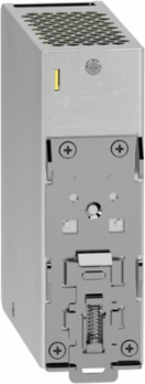

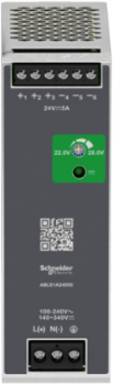

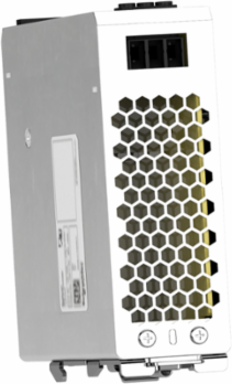

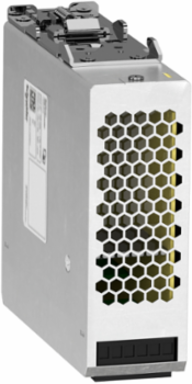

Schneider Electric ABLS1A24050 Regulated Power Supply 100-240V AC, 24V DC, 5A, IP20, 120W
- MPN: ABLS1A24050
- PPN: SCH-ABLS1A24050
CAD
$232.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 5A at 24V DC and a rated power output of 120W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 40mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.550kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 13A, C-Curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Delivering a highly stable 24V DC output at 5 Amps (120W), this Modicon optimized switch mode power supply (SMPS) provides clean, consistent energy to your sensitive PLCs, HMIs, and industrial sensors. This precise voltage regulation prevents erratic machine behavior and communication faults, ensuring your automated manufacturing lines operate flawlessly without frustrating voltage drops.
- Engineered with a wide-range single-phase AC input, this power supply automatically adapts to line voltages ranging from 100V to 240V without any manual switching. This built-in versatility actively safeguards your expensive control panel electronics against damaging brownouts and power surges, making it an ideal, standardized solution for OEM machine builders deploying equipment globally.
- Featuring a highly efficient, space-saving "book" form factor, this Schneider Electric unit snaps effortlessly onto standard 35mm DIN rails to maximize valuable real estate inside high-density electrical enclosures. The streamlined profile allows panel builders and industrial electricians to pack more automation components into smaller footprints, reducing overall hardware costs and simplifying wire routing.
- Equipped with built-in, auto-recovery short-circuit and overload protection, this resilient power supply immediately interrupts current during a fault to prevent catastrophic thermal damage, then safely resumes operation once the issue is cleared. Paired with a highly visible "DC OK" LED indicator for instant diagnostic feedback, it slashes costly production downtime and eliminates the tedious need to replace internal fuses.
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 100...240 V AC single phase, 100...240 V AC phase to phase, 140...340 V DC
- Output Current
- 5 A
- Power Dissipation
- 25 W
- Nominal Network Frequency
- 50 to 60 Hz
- Overvoltage Category
- Category II
- Dielectric Strength
- 3000 V AC input to output
- Input Protection
- integrated fuse 4 A (non-interchangeable), recommended external protection 13 A or 20 A Curve C
- Current Consumption
- < 2.5 A at 115 V AC, < 1.4 A at 230 V AC, < 1.3 A at 140 V DC
- Holding Time
- > 20 ms at 115 V AC, > 40 ms at 230 V AC
- Load Capacitance
- 8000 µF
- Service Life
- 10 years
- Ambient Air Temperature For Operation
- -20 to 70 °C with voltage and mounting dependent derating
- Dimensions
- 123.6 mm H x 40 mm W x 117.6 mm D (4.87 in H x 1.57 in W x 4.63 in D)
- Mounting Type
- top hat type TH35-15 rail, TH35-7.5 rail, double-profile DIN rail (Omega DIN rail)
- Material
- Aluminium enclosure
- Shock Resistance
- 150 m/s² 11 ms
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
- Compliance & Certifications
- EN 62368-1, IEC 62368-1, EN IEC 61010-1/2-201, UL 62368-1, UL 61010-2-201/-1-201, CSA C22.2 No 62368-1/61010-2-201/61010-1, CE, cUL listed/recognized, RCM, CB Scheme, EAC, KC
- Status Indicator
- Green LED for DC output voltage presence
- Brand / Series
- Modicon Power Supply
Output Voltage24 V DC
Rated Power120 W
Efficiency85% at 115 V AC, 88% at 230 V AC
Maximum Leakage Current1 mA at 240 V AC
Electrical Shock Protection ClassClass I
Output Protectionoverload and short-circuits automatic reset, over temperature manual reset, overvoltage manual reset
Line And Load Regulation< 0.5% network 0 to 100% load at 25 °C, < 1% network full voltage range in line at 25 °C
Inrush Current30.0 A at 115 V, 60.0 A at 230 V
Residual Ripple< 120 mV
Meantime Between Failure (MTBF)700000 h at 25 °C, full load conforming to SR 332
Operating Temperature Range-20°C to 50°C without derating (varies with voltage), derating above
Operating Altitude< 5000 m
Weight0.55 kg
Connections - Terminalsscrew connection 0.5-4 mm² (AWG 20-12) without ferrule output, 0.5-2.5 mm² (AWG 20-14) with ferrule output, 0.75-4 mm² (AWG 18-12) input with/without ferrule
Vibration Resistance3 mm 2-9 Hz IEC 60068-2-6, 10 m/s² 9-200 Hz IEC 60068-2-6
IP Degree of ProtectionIP20
Electromagnetic Compatibilityimmunity to ESD (8 kV contact, 15 kV air), RF disturbances up to 6 GHz, fast transients 4 kV, surge 3-4 kV, magnetic fields 30 A/m, voltage dips per IEC 61000 series
Environmental ComplianceProp 65 Compliant, RoHS, WEEE, Mercury Free, China RoHS
Product TypePower Supply
