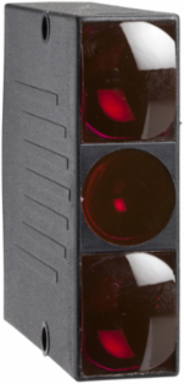

Telemecanique Sensors XUYPS2CO945S Photoelectric sensors XU, XUY, BGS, 2 channels, Sn 600 mm, 12...24 VDC, M8
- MPN: XUYPS2CO945S
- PPN: TES-XUYPS2CO945S
- UNSPSC: 39121528
CAD
$731.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUY, BGS, 2 channels, Sn 600 mm, 12...24 VDC, M8
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 male connector M8, 4 pins |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Sensor Name | XUY |
| Wiring Technique | 4-wire |
| Product Specific Application | control of filling || 2 channels triangulation || detection of object on conveyor against reflective background |
| Sensor Design | compact |
| Electronic Sensor Type | photo-electric sensor |
| Discrete Output Type | PNP and NPN |
|---|---|
| Type Of Output Signal | discrete |
| Emission | infrared LED, modulated |
| Material | plastic |
| Series Name | Application material handling |
| Detection System | diffuse with background suppression |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 50-600 mm |
Complementary
| Current Consumption | < 1.5 mA no-load |
|---|---|
| Status Led | output state 1 LED green) |
| Maximum Delay Recovery | 1.8 ms |
| Supply Voltage Limits | 10-30 V DC |
| Enclosure Material | glass impregnated nylon |
| Maximum Delay Response | 1.8 ms |
| Switching Frequency | > 370 Hz |
|---|---|
| Maximum Voltage Drop | <2 V closed state) |
| Net Weight | 0.055 kg |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CE |
|---|---|
| Ambient Air Temperature For Storage | -20-60 °C |
| Immunity To Ambient Light | 10000 lux natural light || 1300 lux incandescent bulb |
| Ambient Air Temperature For Operation | 0-50 °C |
|---|---|
| Ip Degree Of Protection | IP65 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
