Balluff

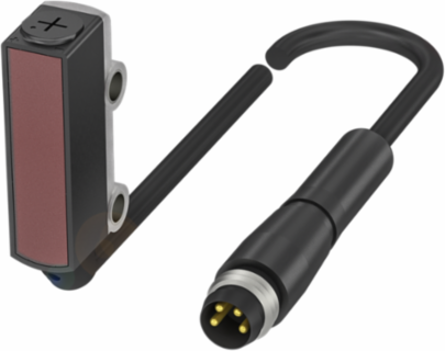

Balluff BOS R020K-PS-RH12-00,2-S75 Diffuse sensor with background suppression - BOS0234

Diffuse sensor with background suppression - BOS0234
  • MPN: BOS R020K-PS-RH12-00,2-S75
  • PPN: BAL-BOS0234

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$269.70/ EA

Specifications

Specifications

Country of Origin
Malaysia
Dimension
7.7 x 32.5 x 13.5 mm
Principle of operation
Photoelectric sensor
Special optical feature
Background suppression
Light type
LED Red light
Range
1...150 mm
Housing material
ABS
Operating voltage Ub
10...30 VDC
SeriesR020K
InterfacePNP Normally open (NO)
Principle of optical operationDiffuse sensor, Triangulation
Beam characteristicFocus, typical at 15 mm
Light spot sizeØ 4.4 mm at 80 mm
ConnectionCable with connector, M8x1-Male, 4-pin, 0.20 m, PVC
Material sensing surfacePMMA
Approval/ConformityCE; cULus; WEEE
