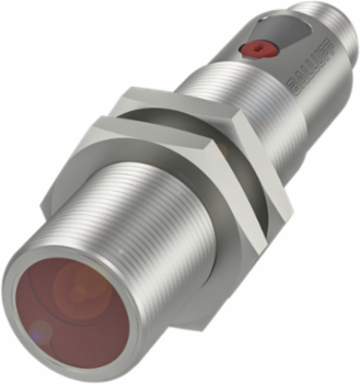

Balluff BOS 18M-PA-RH22-S4 Diffuse sensor with background suppression - BOS014W
- MPN: BOS 18M-PA-RH22-S4
- PPN: BAL-BOS014W
CAD
$270.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Diffuse sensor with background suppression - BOS014W
Documentation & Downloads
Specifications
Additional
- Range
- 30...300 mm
- Connection
- M12x1 Male, 4-pin Connector
- Light Spot Size
- 27 x 27 mm at 300 mm
- Beam Characteristic
- Divergent
- Special Optical Feature
- Background suppression
- Housing Material
- Brass
- Country of Origin
- Hungary
- Light Type
- Red LED
Operating Voltage10...30 VDC
DimensionØ 18 x 75 mm
InterfacePNP Normally open (NO), Normally closed (NC)
Principle of OperationPhotoelectric sensor, Diffuse sensor with Triangulation
Material Sensing SurfaceGlass
Approval/ConformitycULus, CE, UKCA, WEEE
Series18M
