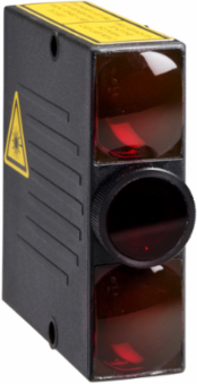

Telemecanique Sensors XUYPS1LCO965S Photoelectric sensors XU, XUY, BGS, laser, Sn 300 mm, 12...24 VDC, M8
- MPN: XUYPS1LCO965S
- PPN: TES-XUYPS1LCO965S
CAD
$927.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This photo-electric sensor is part of the XU Application range. It is recommended for material handling applications. It is designed for the detection of any dark or shiny object, including small sized. This compact design sensor, features an M8, 4-pin male connector. Its detection distance adjustable from 50mm to 300mm. Diffuse system with background suppression, red laser transmission, pulsed, Class 2.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- 1 male connector M8, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUY
- Wiring Technique
- 4-wire
- Product Specific Application
- control of level || monitoring of small parts on production machine || monitoring for crack on a component || suppression of a background || detection of components on a printed circuit
- Sensor Design
- compact
- Electronic Sensor Type
- photo-electric sensor
Discrete Output TypePNP and NPN
Type Of Output Signaldiscrete
Emissionred laser, pulsed 675 nm - class 2
Materialplastic
Series Nameapplication, materials handling
Detection Systemdiffuse with background suppression
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance50-300 mm
Complementary
- Current Consumption
- 35 mA
- Status Led
- output state 1 LED green) || NC function 1 LED none) || NO function 1 LED red) || time delay active 1 LED red)
- Lens Material
- PMMA
- Maximum Voltage Drop
- <2 V closed state)
- Net Weight
- 0.081 kg
- Supply Voltage Limits
- 10-30 V DC
- Enclosure Material
- glass impregnated nylon
- Maximum Delay Response
- 40 ms output circuit depending on wiring
Switching Frequency> 5 kHz
Setting-Upmanual adjustment of focusing
Spot Diameter0 mm manual adjustment
Maximum Delay Recovery150 µs
Minimum Object Diameter For Detection0.5 mm
Switching Capacity In Ma100 mA overload and short-circuit protection)
Output Typesolid state
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- cULus || CE
- Ambient Air Temperature For Storage
- -20-60 °C
- Immunity To Ambient Light
- 10000 lux natural light || 500 lux incandescent bulb
Ambient Air Temperature For Operation0-50 °C
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111232EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111207EN
