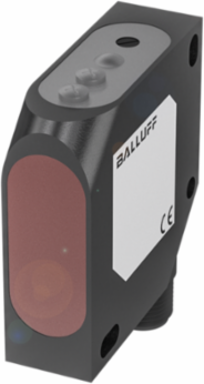

Balluff BOS 26K-PA-1HC-S4-C Photoelectric Diffuse Sensor with Background Suppression, Range 30-300 mm
Balluff BOS 26K-PA-1HC-S4-C Photoelectric Diffuse Sensor with Background Suppression, Range 30-300 mm
- MPN: BOS 26K-PA-1HC-S4-C
- PPN: BAL-BOS0089
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$296.72/ EA
Description
Experience precision and reliability with this diffuse sensor featuring advanced background suppression technology, designed by Balluff. Operating on the principle of photoelectric sensing, this device utilizes triangulation to effectively detect objects within a range of 30 to 300 mm, making it ideal for various automation and control applications. With a robust ABS housing and a compact design measuring 17 x 50 x 50 mm, it is built to withstand industrial environments while providing accurate readings through its LED red light source. The sensor supports a PNP normally open and normally closed interface, ensuring compatibility with a wide range of systems, and is certified with cULus, CE, and UKCA approvals for added peace of mind.
Specifications
Specifications
- Country of Origin
- Germany
- Dimension
- 17 x 50 x 50 mm
- Principle of operation
- Photoelectric sensor
- Special optical feature
- Background suppression
- Light spot size
- Ø 8 mm at 200 mm
- Connection
- Connector, M12x1-Male, 4-pin
- Material sensing surface
- PMMA
- Approval/Conformity
- cULus; CE; UKCA; WEEE
Series26K
InterfacePNP Normally open (NO); PNP Normally closed (NC)
Principle of optical operationDiffuse sensor, Triangulation
Light typeLED Red light
Range30...300 mm
Housing materialABS
Operating voltage Ub10...30 VDC
