Nvent Hoffman

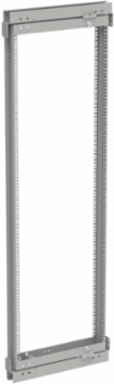

Nvent Hoffman PSF148 Heavy-Duty Swing-Out Rack Frame 1400x800mm, 300 lb Load, Steel, Light Gray

Heavy-Duty Swing-Out Rack Frame 1400x800mm, 300 lb Load, Steel, Light Gray
  • MPN: PSF148
  • UPC: 783510997403
  • PPN: HOF-PSF148
  • UNSPSC: 39121334

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1437.69/ EA

Features

  • Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
  • Spring-loaded pivot post makes installation easy
  • Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
  • Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
  • Furnished with hinges, two quarter-turn latches and mounting hardware
  • Complies with ANSI/EIA RS-310-D rack-mounting standards
  • Maximum equipment load is 300 lb. (136 kg)
  • Mounting holes accommodate either English or metric cage nuts, which are ordered separately
  • Swing-Out Rack Frame assemblies are supplied with mounting supports
  • Hinges that provide 170-degree rotation are optional
  • RAL 7035 textured light-gray polyester powder paint

Specifications

Specifications

BABA
Contact Manufacturer
Fits Frame Width
800
Weight
40
Finish
Powder Coated
Works With
NEMA
Material
Steel
Color
LtGray
Product FamilyProLine
Rack Units25
Color CodeRAL 7035
Thickness (T)2.66
Sub BrandProLine
Sizefits 1400+ x 800mm
