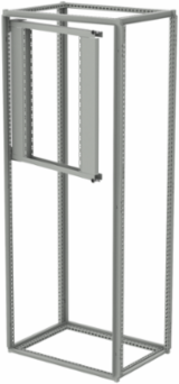

nVent Hoffman PSF8 Partial Swing-Out Rack Frame, fits 800mm wide, Light Gray, Steel
- MPN: PSF8
- UPC: 783510999605
- PPN: HOF-PSF8
- UNSPSC: 39121334
CAD
$1396.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Partial Swing-Out Rack Frame, fits 800mm wide, Light Gray, Steel
Features
- Side hinge brackets are used to mount the swing frame, allowing free access above and below the swing frame
- Used with any height enclosure and hinged on the right or left
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack mounting standards:
- Swing-Out Rack Frame assemblies are supplied with mounting supports; Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Swing-out mounting supports mount to inside of frame at any vertical location
- Mounting supports and swing-out frame can be located at a variable depth using grid straps; swing is reduced when located at a depth other than front mounted
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 800
- Weight
- 26
- Finish
- Powder Coated
- Works With
- NEMA
- Material
- Steel
- Color
- LtGray
Product FamilyProLine
Rack Units16
Color CodeRAL 7035
Thickness (T)12
Sub BrandProLine
Sizefits 800mm wide in
