nVent Hoffman PSF6 Partial Swing-Out Rack Frame, fits 600mm wide, Light Gray, Steel
- MPN: PSF6
- UPC: 783510999506
- PPN: HOF-PSF6
- UNSPSC: 39121334
CAD
$1293.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

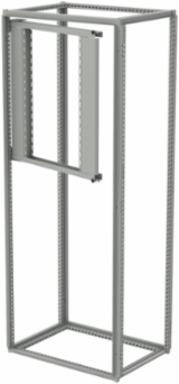

Partial Swing-Out Rack Frame, fits 600mm wide, Light Gray, Steel
Features
- Side hinge brackets are used to mount the swing frame, allowing free access above and below the swing frame
- Used with any height enclosure and hinged on the right or left
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack mounting standards:
- Swing-Out Rack Frame assemblies are supplied with mounting supports; Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Swing-out mounting supports mount to inside of frame at any vertical location
- Mounting supports and swing-out frame can be located at a variable depth using grid straps; swing is reduced when located at a depth other than front mounted
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Fits Frame Width | 600 |
| Weight | 17.32 |
| Finish | Powder Coated |
| Works With | NEMA |
| Material | Steel |
| Color | LtGray |
| Product Family | ProLine |
|---|---|
| Rack Units | 16 |
| Color Code | RAL 7035 |
| Thickness (T) | 12 |
| Sub Brand | ProLine |
| Size | fits 600mm wide in |
