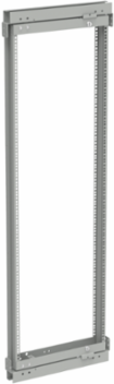

Nvent Hoffman PSF76 Heavy-Duty Swing-Out Rack Frame, Fits 700+ x 600mm, Light Gray, Steel, 27.8 lb
Nvent Hoffman PSF76 Heavy-Duty Swing-Out Rack Frame, Fits 700+ x 600mm, Light Gray, Steel, 27.8 lb
- MPN: PSF76
- UPC: 783510912208
- PPN: HOF-PSF76
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1306.31/ EA
Features
- Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
- Spring-loaded pivot post makes installation easy
- Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
- Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
- Furnished with hinges, two quarter-turn latches and mounting hardware
- Complies with ANSI/EIA RS-310-D rack-mounting standards
- Maximum equipment load is 300 lb. (136 kg)
- Mounting holes accommodate either English or metric cage nuts, which are ordered separately
- Swing-Out Rack Frame assemblies are supplied with mounting supports
- Hinges that provide 170-degree rotation are optional
- RAL 7035 textured light-gray polyester powder paint
Specifications
Specifications
- BABA
- Contact Manufacturer
- Fits Frame Width
- 600
- Weight
- 27.8
- Finish
- Powder Coated
- Works With
- NEMA
- Material
- Steel
- Color
- LtGray
Product FamilyProLine
Rack Units10
Color CodeRAL 7035
Thickness (T)2.66
Sub BrandProLine
Sizefits 700+ x 600mm
