Weidmuller 1952120000 PTS 4
- MPN: 1952120000
- PPN: WDM-1952120000
CAD
$20.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

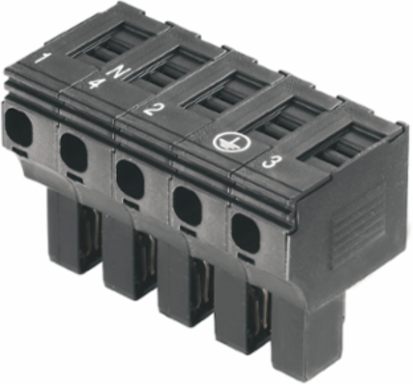

FieldPower®, Plug-in connector, PUSH IN, 0.5 mm² - 4 mm², Number of poles: 5
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Rated Data Acc. To Ul
| Rated current (Use group D / UL 1059) | 20 A |
|---|---|
| Wire connection cross section AWG, max. | AWG 12 |
| Rated voltage (Use group D / UL 1059) | 600 V |
|---|---|
| Wire connection cross section AWG, min. | AWG 16 |
Dimensions And Weights

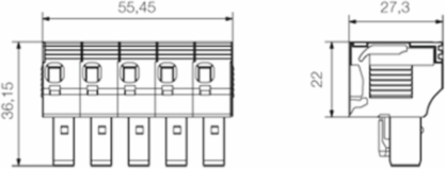

| Length | 27.3 mm |
|---|---|
| Width | 55.45 mm |
| Height | 36.15 mm |
| Net weight | 34.3 g |
| Length (inches) | 1.075 inch |
|---|---|
| Width (inches) | 2.183 inch |
| Height (inches) | 1.423 inch |
Rated Data Acc. To Iec
| Rated cross-section | 4 mm² |
|---|---|
| Rated impulse withstand voltage | 8 kV |
| Standards | UL 1059, IEC 60947-7-1 |
| Rated current | 32 A |
|---|---|
| Rated voltage | 690 V |
General Information #96 Connectors
| Can be coded | Yes, Coded on PE |
|---|---|
| Conductor outlet direction | 90° |
| Continuous operating temp., min. | -50 °C |
| Number of poles | 5 |
| Test point | 2 mm |
| UL 94 flammability rating | V-0 |
| lockable | Yes |
| Colour of insulating material | black |
|---|---|
| Continuous operating temp., max. | 120 °C |
| Number of connections / pole | 1 |
| Plug insulation material | PA GF |
| Type of mounting | Plugged |
| Wire connection method | PUSH IN |
Clamping Capacity, Push-In Connection
| Blade size, PUSH IN connection | 3.0 x 0.5 mm |
|---|---|
| Clamping range, min. Push-In connection | 0.5 mm² |
| Cross-section for connected wire, PUSH IN connection, solid, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0.5 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, min. | 0.5 mm² |
| Finely-stranded flexible, min. PUSH IN connection | 0.5 mm² |
| Stripping length, PUSH IN connection | 12 mm |
| Wire connection cross section, stranded, PUSH IN connection, min. | 0.5 mm² |
| Clamping range, max. Push-In connection | 4 mm² |
|---|---|
| Cross-section for connected wire PUSH IN connection, solid, min. | 0.5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, max. | 4 mm² |
| Finely-stranded flexible, max. PUSH IN connection | 4 mm² |
| Number of poles | 5 |
| Wire connection cross section, stranded, PUSH IN connection, max. | 4 mm² |
Classifications
| ETIM 6.0 | EC002943 |
|---|---|
| eClass 9.0 | 27-44-02-92 |
| eClass 10.0 | 27-44-02-92 |
| ETIM 7.0 | EC002943 |
|---|---|
| eClass 9.1 | 27-44-03-90 |
| UNSPSC | 30-21-18-10 |
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 120 °C |
|---|
