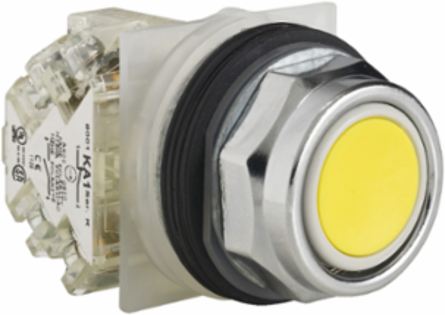

Schneider Electric 9001KR1YH13 Harmony 9001K 30mm Yellow Metal Push-Button, Spring Return, 1 C/O
- MPN: 9001KR1YH13
- UPC: 785901033431
- PPN: SCH-9001KR1YH13
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001KR1YH13 is a yellow push button 600VAC, 10A. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- NEMA, CE, UL listed file E42259 CCN NKCR, CSA LR 25490 class 3211 03
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- metal
- Contacts Type And Composition
- 1 C/O
- Light Block Supply
- without supply
- Mounting Diameter
- 30 mm
- Operator Profile
- flush
- Product Or Component Type
- push-button
- Returnability
- Yes
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Ie] Rated Operational Current10 A, AC-15, 10 A, DC-13
Local Publishable Date2026-01-12
Stocking FlagN
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationstandard
Device Short NameK
Light Sourcewithout
Operator Additional Informationmetal guard
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001K
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colouryellow
Package Weight(Lbs)131.542 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/6/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
