Harmony Pushbutton 30mm Green Mushroom Head, Spring Return, 1 C/O
Schneider Electric

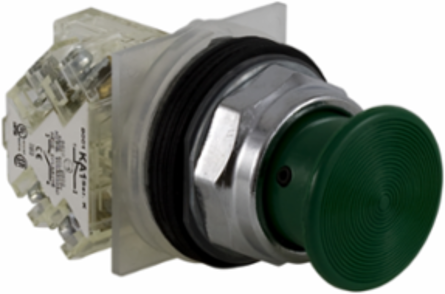

Schneider Electric 9001KR24GH13 Harmony Pushbutton 30mm Green Mushroom Head, Spring Return, 1 C/O

  • MPN: 9001KR24GH13
  • UPC: 785901033479
  • PPN: SCH-9001KR24GH13

CAD

$159.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NO + 1 x NC contacts. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Operator Additional Information
screw-on plastic with set screw
Operator Profile
green mushroom Ø 35 mm
Product Or Component Type
push-button
Range Of ProductHarmony 9001K
Type Of Operatorspring return
Device Short NameK

Complementary

Contacts Type And Composition
1 C/O
Bezel Material
metal
Connections - Terminals
screw clamp terminals
Light Block Supply
without supply
Operator Profile
mushroom Ø 35 mm
Operating Position
any position
Size
30 mm
Light Sourcewithout
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Contact Operationstandard
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourgreen
Device Presentationcomplete product

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Environment

Product Certifications
NEMA || CE || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
