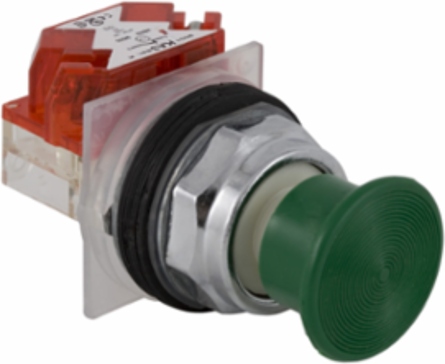

Square D 9001KR24GH6 Harmony 9001K 35mm Green Metal Mushroom Push-Button, 1 NC, Spring Return
Square D 9001KR24GH6 Harmony 9001K 35mm Green Metal Mushroom Push-Button, 1 NC, Spring Return
- MPN: 9001KR24GH6
- UPC: 785901511366
- PPN: SCH-9001KR24GH6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$158.12/ EA
Description
This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NC contact. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Contacts Type And Composition
- 1 NC
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals
- Light Block Supply
- without supply
- Operator Profile
- mushroom Ø 35 mm
- Operating Position
- any position
- Size
- 30 mm
Light Sourcewithout
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Contact Operationstandard
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourgreen
Device Presentationcomplete product
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || NEMA || CSA LR 25490 class 3211 03 || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
Specifications
- Operator Additional Information
- screw-on plastic with set screw
- Operator Profile
- green mushroom Ø 35 mm
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Type Of Operatorspring return
Device Short NameK
