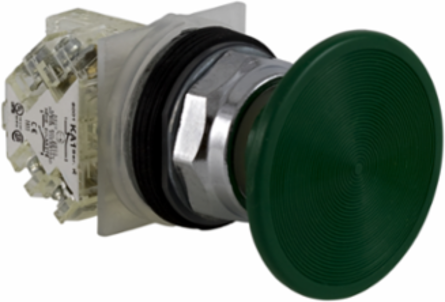

Schneider Electric 9001KR25GH13 Harmony 9001K Green Mushroom Push Button 57mm, 30mm, Spring Return, 1 C/O
- MPN: 9001KR25GH13
- UPC: 785901033554
- PPN: SCH-9001KR25GH13
CAD
$189.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NO + 1 x NC contacts. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Certificate Agency
- CE, CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR, NEMA
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- standard
- Device Short Name
- K
- Light Source
- without
- Operating Position
- any position
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- green
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operator Profilemushroom Ø 57 mm, green mushroom Ø 57 mm
[Ie] Rated Operational Current10 A, AC-15, 10 A, DC-13
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialmetal
Contacts Type And Composition1 C/O
Light Block Supplywithout supply
Mounting Diameter30 mm
Operator Additional Informationscrew-on plastic with set screw
Product Or Component Typepush-button
ReturnabilityNo
Type Of Operatorspring return
Pep CodeENVPEP2503027EN
Connections - Terminalsscrew clamp terminals
Package Weight(Lbs)167.829 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/6/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
