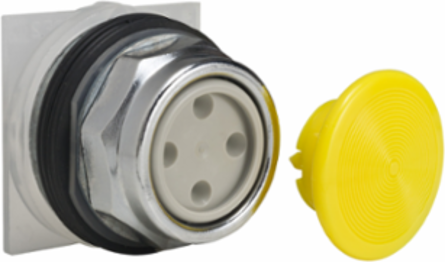

Square D 9001KR4YH13 Harmony Push Button 30mm Yellow Metal Mushroom Spring Return 1 C/O
Square D 9001KR4YH13 Harmony Push Button 30mm Yellow Metal Mushroom Spring Return 1 C/O
- MPN: 9001KR4YH13
- UPC: 785901033905
- PPN: SCH-9001KR4YH13
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$159.94/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton is a simple switch mechanism to control some aspect of a machine or a process." "It is a pushbutton with a rated voltage of 600V AC and rated operating current of 10A, AC-15 and 10A, DC-13." "It is a NEMA 1/2/3/3R/4/6/12/13 rated product." "This pushbutton is fitted with plastic full guard." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CSA LR 25490 class 3211 03, UL listed file E42259 CCN NKCR and CE." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Contacts Type And Composition
- 1 C/O
- [Ie] Rated Operational Current
- 10 A, AC-15 || 10 A, DC-13
- Light Source
- without
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Size
- 30 mm
Bezel Materialmetal
Contact Operationstandard
Light Block Supplywithout supply
Operator Profilemushroom Ø 35 mm
Cap/Operator Or Lens Colouryellow
Device Presentationcomplete product
Specifications
- Operator Additional Information
- snap-in plastic
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Device Short NameK
Environment
- Product Certifications
- CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
