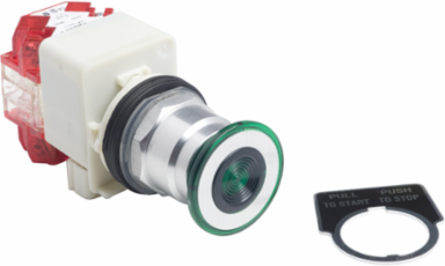

Schneider Electric 9001KR8P1LGGH25 Harmony 9001K Illuminated Push Button, 30 mm, Green LED, 3 Positions
- MPN: 9001KR8P1LGGH25
- UPC: 785901760979
- PPN: SCH-9001KR8P1LGGH25
- UNSPSC: 39122216
CAD
$374.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This operator can be used for three wire control. This operator has one 9001KA3 and one 9001KA5 contact block. When these contact blocks are used this operator can be pulled to start and push to stop a control circuit. Contact block have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This pilot light has a 110/120 VAC 50/60Hz LED light module to provide the illumination. The light module has a green LED lamp. A push pull operator has a green mushroom knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
Features
- Enhanced operator efficiency
- High performance
- Simple modular design
- Rugged and durable, simple spring return mechanism
- Designed to fit in a standard 30mm cutout
- High lifetime, less maintenance and replacement
- Impact and corrosion resistant bezel and body
- Ideal for severe environments
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Size | 30 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 10 A, AC-15, 10 A, DC-13 |
|---|
| Us Rated Supply Voltage | 110...120 V |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Light Block Supply | without supply, via integral transformer |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Contacts Type And Composition | 1 NC late break + 1 NC |
| Light Source | LED |
| Operator Additional Information | screw-on plastic |
| Operator Profile | mushroom Ø 41 mm |
| Product Or Component Type | illuminated push-button |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Light Source Color | green |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CE, CSA LR 25490 class 3211 03, NEMA, UL listed file E42259 CCN NKCR |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | metal |
| Contact Operation | late-break |
| Device Short Name | K |
| Mounting Diameter | 30 mm |
| Operator Position Information | 3 positions |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony 9001K |
| Supply Frequency | 50...60 Hz |
| Type Of Operator | pull : spring return, center : stay put, push : spring return |
| Cap/Operator Or Lens Colour | green |
| Customs Code | 8536509035 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 3R/6/13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP65/IP66 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | illuminated push-button |
|---|
| Range Of Product | Harmony 9001K |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|---|
| ETIM 10 | EC001028 |
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
