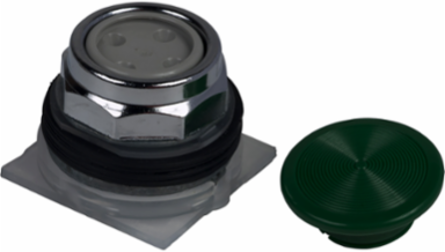

Square D 9001KR4G Push-button head, Harmony 9001K, metal, snap-in plastic mushroom 35mm, green, 30mm, spring return

Push-button head, Harmony 9001K, metal, snap-in plastic mushroom 35mm, green, 30mm, spring return
  • MPN: 9001KR4G
  • UPC: 785901048480
  • PPN: SCH-9001KR4G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$104.51/ EA

Description

This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This 35mm mushroom shaped push button headis ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Specifications

Operator Additional Information
snap-in plastic
Operator Profile
green flush
Device Short Name
9001K
Range Of ProductHarmony 9001K
Product Or Component Typehead for push-button

Complementary

Contacts Type And Composition
without contact block
Mounting Diameter
30 mm
Operator Profile
mushroom Ø 35 mm
Cap/Operator Or Lens Colour
green
Bezel Materialmetal
Type Of Operatorspring return
Shape Of Signaling Unit Headround

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
