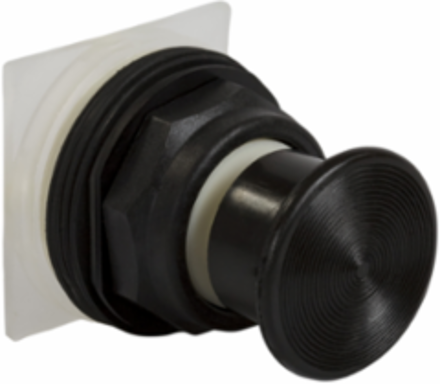

Square D 9001SKR24B Push-button head, Harmony 9001SK, plastic, mushroom 35mm, black, 30mm, spring return

MPN: 9001SKR24B
UPC: 785901042150
PPN: SCH-9001SKR24B

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$104.51/ EA

Qty:

Loading add to cart quantity...

Description

This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 35mm mushroom head. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Specifications

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: EnvPEP120817EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes

Complementary

Contacts Type And Composition: without contact block

Mechanical Durability: 5000000 cycles

Type Of Operator: spring return

Cap/Operator Or Lens Colour: black

Device Presentation: basic element

Bezel Materialplastic

Operator Profilemushroom Ø 35 mm

Shape Of Signaling Unit Headround

Size30 mm

Environment

Product Certifications: CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE

Ambient Air Temperature For Storage: -40-70 °C

Vibration Resistance: 7 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection: IP66

Ambient Air Temperature For Operation-25-70 °C

Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Protective TreatmentTC

Specifications

Operator Additional Information: screw-on plastic with set screw

Product Or Component Type: head for push-button

Range Of ProductHarmony 9001SK

Device Short Name9001SK
