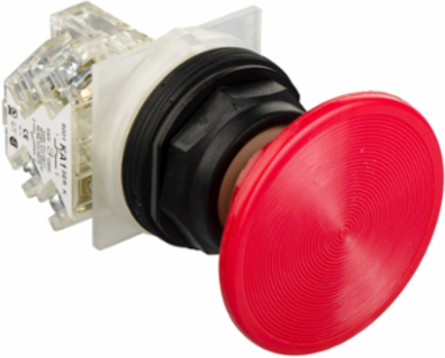

Schneider Electric 9001SKR24R Push-Button Head, Mushroom 35mm, Spring Return, Red, IP66
- MPN: 9001SKR24R
- UPC: 785901039716
- PPN: SCH-9001SKR24R
CAD
$104.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 35mm mushroom head. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR, CE
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Device Short Name
- 9001SK
- Operator Additional Information
- screw-on plastic with set screw
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- head for push-button
- Range Of Product
- Harmony 9001SK
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 68.039 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Compositionwithout contact block
Mechanical Durability5000000 cycles
Operator Profilemushroom Ø 35 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Sustainable PackagingYes
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2503027EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66, IP65/IP66
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503027EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
