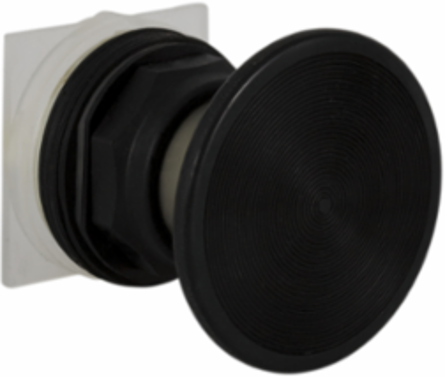

Harmony 9001SK Push-button Head, 57mm Mushroom, IP66, Spring Return
Square D

Square D 9001SKR25B Harmony 9001SK Push-button Head, 57mm Mushroom, IP66, Spring Return

  • MPN: 9001SKR25B
  • UPC: 785901042365
  • PPN: SCH-9001SKR25B

CAD

$104.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001SK
Device Short Name
9001SK
Product Or Component Typehead for push-button

Complementary

Contacts Type And Composition
without contact block
Bezel Material
plastic
Mechanical Durability
5000000 cycles
Type Of Operator
spring return
Operating Position
any position
Cap/Operator Or Lens Colour
black
Cad Overall Depth
69 mm
Size
30 mm
Operator Additional Informationscrew-on plastic with set screw
Operator Profileblack mushroom Ø 30 mm, unmarked
Mounting Diameter30 mm
Operator Profilemushroom Ø 57 mm
Shape Of Signaling Unit Headround
Cad Overall Width46 mm
Net Weight0.095 kg
Cad Overall Height45 mm

Environment

Product Certifications
CSA LR25490 class 3211 03 || NEMA || UL 508 || UL listed file E78403 CCN NKCR
Ambient Air Temperature For Storage
-40-70 °C
Electrical Shock Protection Class
class II IEC 61140
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
EnvPEP120817EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
