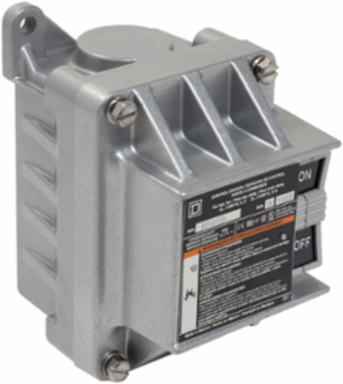

Square D 9001BR216 Harmony Complete Control Station, 2 Push Buttons ON/OFF, NEMA 7/9, 5A, 600V AC
- MPN: 9001BR216
- UPC: 785901026488
- PPN: SCH-9001BR216
CAD
$577.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two maintained push buttons inside. It has a ON push button with a normally open contact. It has a OFF push button with a normally open contact. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Control Station Application
- two functions
- Colour Of Base Of Enclosure
- grey
- Device Short Name
- 9001BR
Range Of ProductHarmony 9001B
Product Or Component Typecomplete control station
Complementary
- Contacts Type And Composition
- 1 NO + 1 NC
- [Ie] Rated Operational Current
- 5 A 600 V, AC
- Type Of Operator
- maintained
- Material
- cast zinc
- Device Mounting
- surface
Control Station Composition1 push-button, black, white ON || 1 push-button, red, white OFF
Mechanical Durability5000000 cycles
MarkingCE
Type Of Installationindoor
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1305038EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1305038EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 7/9
Ambient Air Temperature For Operation-25-70 °C
Environmental Characteristichazardous location
