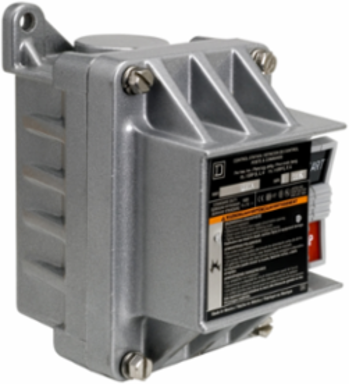

Schneider Electric 9001BR204 Harmony Control Station, 2 Push Buttons, 5A, 600V AC, NEMA 7/9

MPN: 9001BR204
UPC: 785901600886
PPN: SCH-9001BR204

$436.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CE, CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard

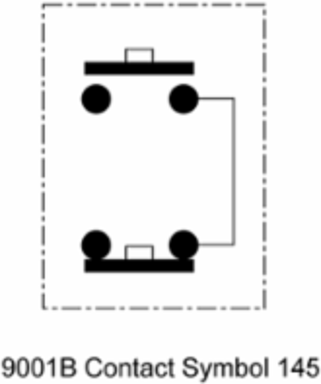

Contacts Type And Composition	1 NO + 1 NC
Device Short Name	9001BR
Operator Profile	2 projecting push-buttons
Product Or Component Type	complete control station
Returnability	Yes
Number Of Command Positions	2
Pep Code	ENVPEP2503027EN
Connections - Terminals	screw clamp terminal
Package Weight(Lbs)	1.619 kg
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	4
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Composition	2 push-buttons START-STOP
Environmental Characteristic	hazardous location
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony 9001B
Sustainable Packaging	No
Number Of Push Buttons	2
[Ie] Rated Operational Current	5 A 600 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509033

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2503027EN

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Nema Degree Of Protection	NEMA 7/9
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
