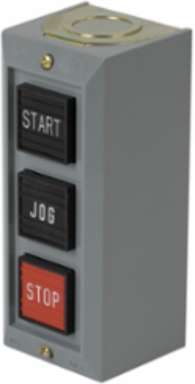

Schneider Electric 9001BG316 Harmony Control Station, NEMA 1, 5A, 600 VAC, START/JOG/STOP
- MPN: 9001BG316
- UPC: 785901794240
- PPN: SCH-9001BG316
- UNSPSC: 39121565
CAD
$205.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These standard duty control stations come complete with an enclosure, operators and contacts. This control station has three square momentary push buttons. It has a START push button with a normally open and a normally closed contact. It has a JOG push button with a normally open and a normally closed contact. It also has a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Features
- For standard hoist applications
- Easy to hold in one hand with contoured grip
- Momentary contact
- Ergonomic design makes it easy to use
- Durable plastic that can work in any industrial environment
- Simple to order;retrofit a machine or add to a new machine
- NEMA 1 degree of protection
- Wide range of operating temperature from -25°C to 70°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Ie Rated Operational Current | 5 A 600 V, AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03 |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Compatibility Code | 9001BG |
| Control Station Application | three functions |
| Dc Control Voltage | 125-600 V |
| Housing Material | metal |
| Material | cast zinc |
| Operator Profile | 3 projecting push-buttons |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001B |
| Sustainable Packaging | Yes |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 3 |
| Number Of Contacts As Normally Open Contact | 2 |
| Color Of Base Of Enclosure | grey |
| Housing Color | grey |
| Customs Code | 8537109170 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 2 NO + 3 NC |
| Control Station Composition | 3 push-buttons, white START-JOG-STOP |
| Device Short Name | 9001BG |
| Marking | CE |
| Mechanical Durability | 5000000 cycles |
| Operators Description | black ''START'' - black ''JOG'' - red ''STOP'' |
| Product Or Component Type | complete control station |
| Returnability | No |
| Type Of Operator | momentary |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Contacts As Normally Closed Contact | 3 |
| Number Of Push Buttons | 3 |
| Color Of Cover | grey |
| Nbr. Of Units In Pkg. | 1 |
| Emergency Power Off Epo | no |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony 9001B |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
