Schneider Electric 9001BR104 Harmony 9001B Complete Control Station, 5A 600V AC, NEMA 7/9
- MPN: 9001BR104
- UPC: 785901600855
- PPN: SCH-9001BR104
- UNSPSC: 39121565
CAD
$436.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

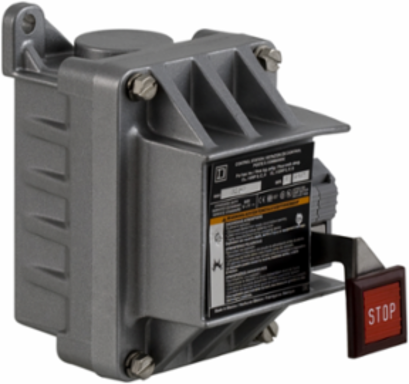

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the momentary push button inside. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Ie Rated Operational Current | 5 A 600 V, AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR |
| Local Publishable Date | 2026-08-26 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Compatibility Code | 9001BR |
| Control Station Application | stop function |
| Dc Control Voltage | 125-600 V |
| Environmental Characteristic | hazardous location |
| Marking | CE |
| Mechanical Durability | 5000000 cycles |
| Operators Description | red ''STOP'' 1 NC |
| Product Or Component Type | complete control station |
| Returnability | No |
| Type Of Operator | momentary |
| Ac Control Voltage 60 Hz | 125-600 V |
| Number Of Contacts As Normally Closed Contact | 1 |
| Color Of Base Of Enclosure | grey |
| Housing Color | grey |
| Customs Code | 8537109170 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NC |
| Control Station Composition | 1 push-button, red, white STOP |
| Device Short Name | 9001BR |
| Housing Material | metal |
| Material | cast zinc |
| Operator Profile | 1 flush push-button |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001B |
| Sustainable Packaging | No |
| Ac Control Voltage 50 Hz | 125-600 V |
| Number Of Command Positions | 1 |
| Number Of Push Buttons | 1 |
| Color Of Cover | grey |
| Nbr. Of Units In Pkg. | 1 |
| Emergency Power Off Epo | no |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503027EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 7/9 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | complete control station |
|---|
| Range Of Product | Harmony 9001B |
|---|
ETIM
| ETIM 8 | EC000225 |
|---|---|
| ETIM 10 | EC000225 |
| ETIM 9 | EC000225 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
