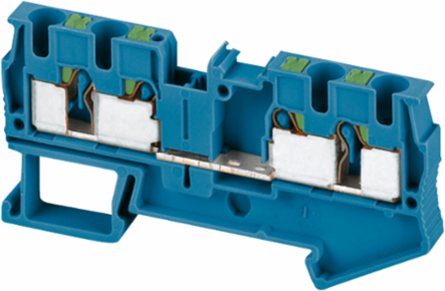

Schneider Electric NSYTRP44BL Linergy TR Terminal Block 4 Points 4 mm2 Blue Set of 50
- MPN: NSYTRP44BL
- PPN: SCH-NSYTRP44BL
CAD
$6.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for versatility in automation and control applications, the Schneider Electric Linergy TR Terminal Block features four connection points and accommodates wires up to 4 mm2. This robust blue terminal block is provided in a convenient set of 50, making it an ideal choice for large projects or extensive installations. Known for its reliability and efficient performance, it serves as a key component in streamlining electrical connections, ensuring secure and organized wiring solutions in various industrial settings.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
- Length
- 77 mm (3.03 in)
- Width
- 6.2 mm (0.24 in)
- Connection Type
- 2 x push-in downstream, 2 x push-in upstream
- Mounting Mode
- Clip-on
- Wire Size Range
- 0.2-6 mm2 solid, 0.2-4 mm2 flexible
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Resistivity
- 10000 M m IEC 60093
- Creep Resistance
- 500 CTI (>400 kB) IEC 60093
- Ambient Air Temperature for Operation
- -40 to 130 C (-40 to 266 F)
- Mercury Free
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- Operating Temperature Standard
- IEC 60216-1, VDE 0304-T21
- Country of Origin
- China
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
- Terminal Block Level
- 1
- Device Short Name
- TRP
- Accessory Category
- Connection accessory
- Warranty
- 18 months
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A cURus
Height36.5 mm (1.44 in)
Number of Terminals4
Connection PositionTop
Nominal Cross Section4 mm2
Wire Stripping Length12 mm (0.47 in)
Dielectric Strength1000 V IEC 60243-1
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 G IEC 60093
Flame RetardanceV0 0.8 mm UL 94
ComplianceLR, EAC, IECEx, GL, ATEX, cURus, CSA, REACh, EU RoHS, China RoHS
Rohs Exemption InformationYes
Reach Free Of SvhcYes
Halogen Content PerformanceHalogen free plastic parts
ColourBlue
Net Weight14.2 g
Product CompatibilitySpacial enclosures
Tool TypeConnection without tool, disconnection flat screwdriver
Product NameLinergy TR
Product CertificationsLR, EAC, IECEx, GL, ATEX, cURus, CSA
