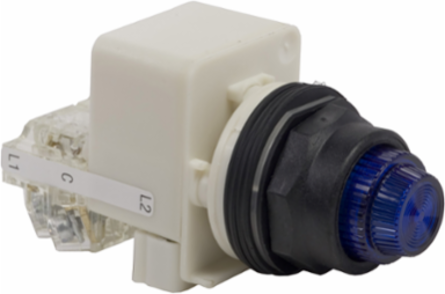

Square D 9001SKT38LLL31 Harmony Push-to-Test Pilot Light 30mm Blue LED 120V
- MPN: 9001SKT38LLL31
- UPC: 785901792703
- PPN: SCH-9001SKT38LLL31
CAD
$253.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Harmony Push-to-Test Pilot Light from Schneider Electric is designed to enhance automation and control systems with its reliable and intuitive functionality. Featuring a vibrant blue LED, this 30mm pilot light provides clear visual feedback, making it easy to identify operational states within your equipment. With an operational voltage of 120V, it seamlessly integrates into existing setups, ensuring both performance and safety. Whether used in industrial systems or panel applications, this pilot light exemplifies durability and efficiency, making it a vital component for modern control environments.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V AC/DC
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Operating Position
- any position
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Mounting Diameter
- 30 mm
- CAD Overall Height
- 70 mm
- Net Weight
- 0.181 kg
- Bulb Base
- BA 9s
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Lens Type
- fresnel plastic
- Electrical Shock Protection Class
- Class II IEC 61140
- IP Degree of Protection
- IP66 IEC 60529
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Standards Compliance
- CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-5-4, JIS C8201-1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- EU Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile
- ENVEOLI121109EN
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- push-to-test pilot light
- Light Source
- blue LED
- Cap/Operator Or Lens Colour
- blue
Conventional Free Air Thermal Current10 A
Rated Insulation Voltage250 V EN/IEC 60947-1
Operating Modepush-to-test
Ambient Air Temperature for Operation-25 to 70 °C
Size30 mm
CAD Overall Width54 mm
CAD Overall Depth42 mm
Shape of Signaling Unit Headround
Tightening Torque0.8 N.m EN/IEC 60947-1
Materialpolycarbonate, plastic
Bezel Materialplastic
Protective TreatmentTC
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 4X, 12, 13
Shock Resistance50 gn IEC 60068-2-27
Product CertificationsUL 508, NEMA
Mercury FreeYes
China Rohs RegulationX
Rohs Exemption InformationYes
Environmental DisclosureENVPEP121113EN
Device Short Name9001SK
Shape Of Screw Headcross slotted
Light Source Colourblue
Light Block Supplydirect 120 V AC/DC
