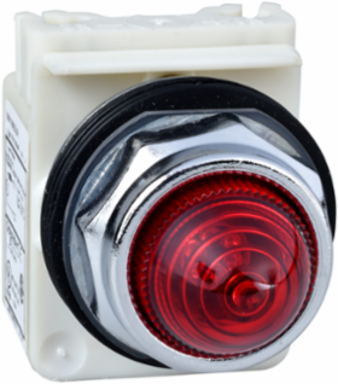

Square D 9001KP38S5R9 Pilot Light 120V, 30 mm, Red Lens, IP66, NEMA 4/6
- MPN: 9001KP38S5R9
- PPN: SCH-9001KP38S5R9
CAD
$189.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This pilot light from Schneider Electric is designed with functionality and durability in mind, making it an ideal choice for automation and control applications. Featuring a vibrant red lens, it operates at 120V and is perfectly suited for environments that require reliable signaling. With an IP66 rating and compliance with NEMA 4 and 6 standards, this device offers excellent protection against dust and water, ensuring longevity even in harsh conditions. Whether used in industrial settings or for control panels, its compact 30 mm design allows for easy integration into existing systems, providing clear visual indications that improve operational safety and efficiency.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V AC/DC
- Conventional Free Air Thermal Current
- 10 A
- Rated Impulse Withstand Voltage
- 2.5 kV
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Mounting Diameter
- 30 mm (1.18 in)
- Net Weight
- 0.134 kg
- Operating Position
- Any position
- Lens Type
- Domed plastic
- Lens Color
- Red
- Bulb Base
- BA 9s
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 6, 12, 13
- Product Certifications
- UL 508, NEMA
- Vibration Resistance
- 7 gn, 2 to 500 Hz IEC 60068-2-6
- RoHS Compliance
- Pro-active compliance (out of EU RoHS legal scope)
- Country of Origin
- Mexico
Short-Circuit Protection10 A cartridge fuse
Rated Insulation Voltage250 V
Overvoltage CategoryClass II
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Dimensions (W x H x D)54 x 70 x 42 mm (2.13 x 2.76 x 1.65 in)
Tightening Torque0.8 N·m (7.08 lbf·in) IEC 60947-1
Bezel MaterialChromium plated metal
ConnectionsScrew clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Light SourceIncandescent
IP Degree of ProtectionIP66 IEC 60529
StandardsJIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14, JIS C 852, EN/IEC 60947-1
Protective TreatmentTC
Shock Resistance50 gn IEC 60068-2-27
Mercury FreeYes
