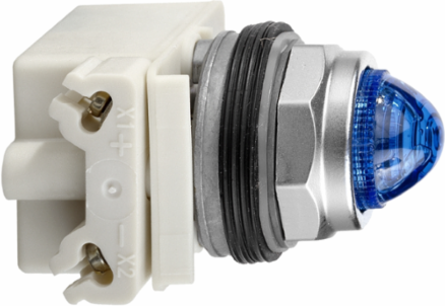

Schneider Electric 9001KP35LLL9 Harmony 9001K Blue LED Pilot Light, 30 mm, IP66, 24-28V
- MPN: 9001KP35LLL9
- UPC: 785901601968
- PPN: SCH-9001KP35LLL9
CAD
$235.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This blue LED pilot light from Schneider Electric s Harmony 9001K series is designed for reliable operation in challenging environments, boasting an IP66 rating that ensures excellent protection against dust and water. With a diameter of 30 mm and operating voltage of 24-28V, this unit is both versatile and easy to integrate into various automation and control systems. Its vibrant illumination not only provides clear visual status indication but also enhances the overall visibility of your control panels, making it a vital component in commercial and industrial applications.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24...28 V AC/DC
- Short-Circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Rated Insulation Voltage
- 250 V IEC 60947-1
- Operating Position
- Any position
- Vibration Resistance
- 7 gn, 2 to 500 Hz IEC 60068-2-6
- Mounting Diameter
- 30 mm
- Net Weight
- 0.134 kg (0.30 lb)
- Connection Terminals
- Screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm2 IEC 60947-1
- Material - Bezel
- Metal
- Lens Type
- Domed plastic
- Light Source
- Blue LED
- IP Degree of Protection
- IP66 IEC 60529
- Compliance
- UL 508, RoHS, REACH, China RoHS
- Mercury Free
- Yes
- Series
- Harmony 9001K
Supply Voltage24...28 V AC/DC
Conventional Free Air Thermal Current10 A
Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Shock Resistance50 gn IEC 60068-2-27
Dimensions (W x H x D)54 x 70 x 42 mm (2.13 x 2.76 x 1.65 in)
Panel Thickness1 to 6 mm (0.04 to 0.24 in)
Bulb BaseBA 9s
Tightening Torque0.8 N m (7.08 lbf in) IEC 60947-1
Material - LensPolycarbonate
Lens ColorBlue
Overvoltage CategoryClass II IEC 61140
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 6, 12, 13
StandardsEN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, JIS C8201-1, JIS C8201-5-1, JIS C 852
Product TypePilot light
