Schneider Electric 9001KR9RH13 Push Button, 30mm Metal, Red Mushroom 41mm, IP66, 1 C/O
- MPN: 9001KR9RH13
- UPC: 785901821090
- PPN: SCH-9001KR9RH13
CAD
$220.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

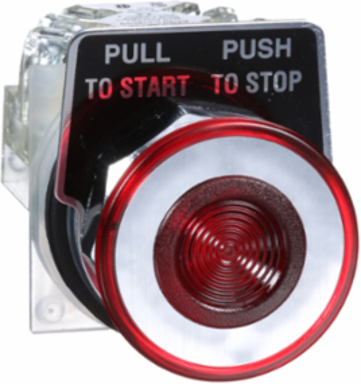

This red push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 41mm, unmarked It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 maintained positions push pull operator and it is supplied with 1 x C/O contact and screw clamp terminals. It weighs 141g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features

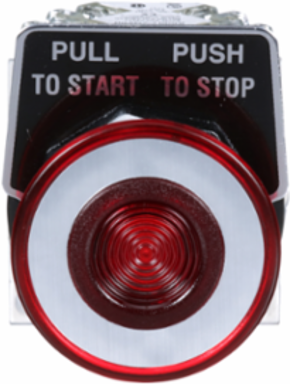

- This heavy-duty push button utilizes a 2-position, maintained action (push-to-stop, pull-to-start) mechanism that securely stays in place once actuated. This dual-position, non-momentary functionality provides an explicit, tactile physical state, preventing accidental restarts in machinery control circuits and automated systems.
- Featuring a large 41mm red mushroom-head operator, this switch delivers maximum visibility and a substantial surface area for instantaneous activation. Even when operators are wearing heavy industrial work gloves, the wide profile ensures swift, non-fumble access when stopping critical operations.

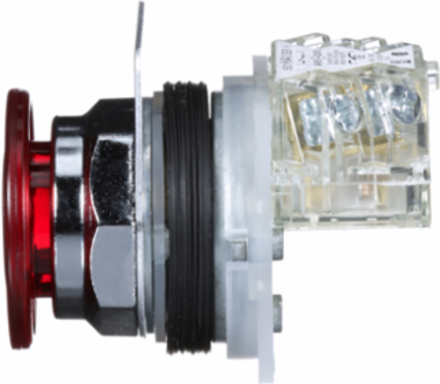

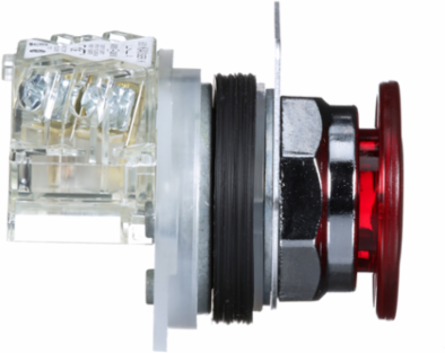

- Built on the legacy Harmony 9001K 30mm platform, this complete assembly features a premium chromium-plated metal bezel and a robust silver-alloy body that effortlessly resists structural damage and mechanical vibration up to 7 gn. This heavy-duty metal construction prevents the cracking and thread-stripping common with cheaper plastic alternatives, guaranteeing a mechanical life of up to 5,000,000 cycles.

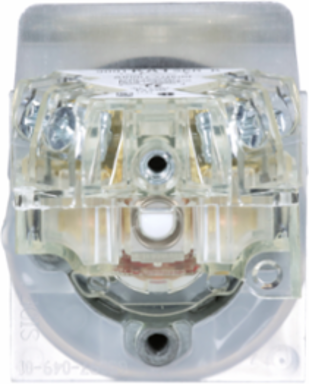

- Supplied as a complete, pre-assembled modular unit, it includes 1 Changeover (C/O) contact block configures as 1 NO / 1 NC with high-grade silver alloy contacts rated for up to 600V AC at 12 kA. The finger-safe screw clamp terminals feature pre-backed out screws to expedite mounting, allowing you to easily handle complex multi-circuit signaling or pilot control tasks out of the box.
- Designed for seamless integration into standard 30mm panel cutouts, this unit features a specialized automatic self-grounding mechanism that eliminates the need for manual ground wire routing. The secure single-screw mounting system and octagonal ring nut dramatically accelerate installation time while ensuring a vibration-resistant bond directly to the metal enclosure frame.
- Engineered to meet strict NEMA 1, 2, 3, 3R, 4, 6, 12, and 13 standards alongside an IP66 rating, this oil-tight, dust-tight, and water-tight push button requires no protective rubber boots to block ingress. It completely seals out everything from falling dirt and rain in outdoor setups to high-pressure water jets, coolant spray, and airborne oil mist in heavy industrial settings, ensuring uninterrupted performance.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 240 V AC-15, 0.55 A 125 V DC-13
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15 || 15 kA 480 V AC-15 || 30 kA 240 V AC-15
- Rated Impulse Withstand Voltage
- 2.5 kV
- IP Degree of Protection
- IP66 IEC 60529
- Mechanical Durability
- 5,000,000 cycles
- Size
- 30 mm
- CAD Overall Width
- 46 mm (1.81 in)
- CAD Overall Depth
- 74 mm (2.91 in)
- Operator Profile
- red mushroom Ø 41 mm, unmarked
- Terminal Type
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Head Material
- plastic
- Shape of Screw Head
- cross slotted
- Operating Position
- any position
- Shock Resistance
- 50 gn IEC 60068-2-27
Conventional Free Air Thermal Current10 A
Rated Breaking Capacity3 kA 240 V AC-15 || 6 kA 120 V AC-15 || 1.5 kA 480 V AC-15
Rated Insulation Voltage250 V
Overvoltage CategoryClass II IEC 61140
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 6, 12, 13
Tightening Torque0.8 N.m EN/IEC 60947-1
Mounting Diameter30 mm (1.18 in)
CAD Overall Height45 mm
Weight141 g (0.31 lb)
Contacts1 C/O
Contacts Materialsilver alloy contacts
Shape of Signaling Unit Headround
Operator Position Information2 positions
Vibration Resistance7 gn (2 to 500 Hz) IEC 60068-2-6
ComplianceUL Listed, CSA Certified, CE Certified, RoHS Compliant
