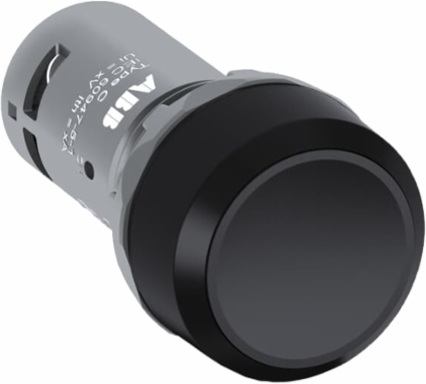

ABB 1SFA619101R1056 CP2-10B-02 Pushbutton
- MPN: 1SFA619101R1056
- PPN: ABB-1SFA619101R1056
- UNSPSC: 39121500
CAD
$64.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CP2-10B-02 Pushbutton is: Compact - Pushbutton - Maintained - Flush - Black - Non-illuminated - Black Plastic - 2NC - 0 NO - 2 NC - 300 V
Specifications
Additional
- Voltage
- Maximum 300 V
- Rated Operational Current AC-15 (Ie)
- (240 V) 1 A
- Mechanical Durability
- 0.5 million
- Power Loss
- Maximum 5 W
- Number of Auxiliary Contacts NC
- 2
- Contact Configuration
- 2 NC, 0 NO
- Product Net Height
- 0.03 m
- Product Net Weight
- 0.022 kg
- Actuator Type
- Flush
- Bezel Material
- Black Plastic
- Connection Type
- Screw Clamp
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm2, Flexible with Ferrule 2 x 0.5...1.5 mm2, Flexible with Insulated Ferrule 1 x 0.5...1.5 mm2, Flexible with Insulated Ferrule 2 x 0.5...1.5 mm2, Flexible 1 x 0.5...1.5 mm2, Flexible 2 x 0.5...1.5 mm2, Solid 1 x 0.5...1.5 mm2, Solid 2 x 0.5...1.5 mm2
- Tightening Torque
- 0.8 N m
- Enclosure Type NEMA
- Type 1, Type 3R, Type 4, Type 4X, Type 12, Type 13
- Pollution Degree
- 3
- RoHS Date
- 0626 5
- Customs Tariff Number
- 8536501999
- E-Number (Finland)
- 2312764
- Object Classification Code
- S
- WEEE B2C / B2B
- Business To Business
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A, (125 V) 0.2 A
Rated Frequency50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)6 kV
Ambient Air TemperatureOperation -25 to +70 C, Storage -40 to +85 C
Number of Auxiliary Contacts NO0
Product Net Width0.03 m
Product Net Depth / Length0.055 m
Wire Stripping Length6 mm
ColorBlack
MaterialBlack Plastic
Terminal TypeScrew Terminals
Connecting Capacity UL/CSA1x 22...14 AWG, 2x 22...14 AWG
FunctionMaintained
Degree of ProtectionFront IP66, IP67, IP69K; Terminals IP20
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863
RoHS Information2CMT2015-005451
E-Number (Norway)4373449
E-Number (Sweden)3705436
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
StyleFlush
