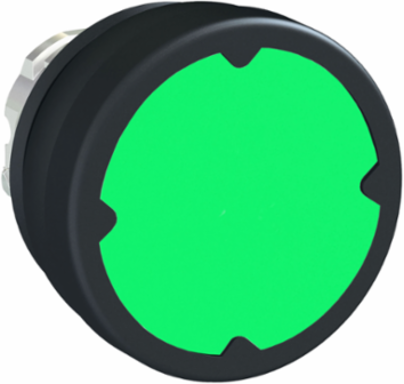

Schneider Electric ZB4BC380 Harmony XB4 Green Flush Push Button Head, 22mm, Metal, IP66
Schneider Electric ZB4BC380 Harmony XB4 Green Flush Push Button Head, 22mm, Metal, IP66
- MPN: ZB4BC380
- PPN: SCH-ZB4BC380
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$75.17/ EA
Description
This Harmony XB4, flush green button head operates with a spring return / impulse mechanism, is used in harsh environment. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- CSA || CE || UL
- Ambient Air Temperature For Operation
- -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP67 || IP69
- Ambient Air Temperature For Storage
- -40-85 °C
Ik Degree Of ProtectionIK06 conforming to IEC 62262
StandardsIEC 60947-5-1 || IEC 60947-1 || UL 508 || CSA C22.2
Resistance To High Pressure Washer90 Pa 82.5 °C
Nema Degree Of ProtectionNEMA 4 UL 508 || NEMA 13 || NEMA 12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Operator Additional Information
- vertical mounting || horizontal mounting
- Type Of Operator
- spring return
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height
- 18.5 mm
- Cap/Operator Or Lens Colour
- green
- Mechanical Durability
- 10000000 cycles
- Electrical Shock Protection Class
- class I IEC 61140
- Cad Overall Depth
- 37 mm
Main Groupharsh environment
Electrical Composition CodeC1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Shape Of Signaling Unit Headround
Net Weight0.036 kg
Device Presentationbasic element
Operator Profilegreen flush, unmarked
Markingunmarked
Cad Overall Width37 mm
Group Of Productflush unmarked
Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- head for push-button
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB4
Mounting Diameter22 mm
Head Typestandard
Bezel Materialchromium plated metal
