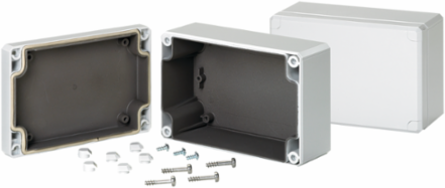

nVent Hoffman Q16129PCEMC QLine D EMC Enclosure Type 4X, 160x120x90mm, Light Gray, Polycarbonate
- MPN: Q16129PCEMC
- UPC: 783510465797
- PPN: HOF-Q16129PCEMC
- UNSPSC: 39121324
CAD
$240.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine D polycarbonate EMC Enclosures provide EMC protection in corrosive environments. This QLine D EMC Enclosure Type 4X, Q16129PCEMC item measures 160x120x90mm with a material of Polycarbonate.
Features
- Body is impact-resistant polycarbonate
- EMC conductive coating in base and cover
- Gasket of silver/silicone
- Mounting holes molded directly under cover screws
- Cross-point captivated cover screws are stainless steel
- Mounting tracks along body side walls and bosses on cover for PC card installation
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Screws provided for mounting optional panel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 120
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Interior Finish
- EMC Conductive Coating
- Mounting (G x H)
- 148 x 90
- Weight
- 0.8
- Material
- Polycarbonate
- Cubic Capacity
- 88 cubic in
Height (H)160
Depth (D)90
Product FamilyQLine
ColorLight Gray
Thickness (T)3
Internal Dimensions (A x B x C)6.02 x 4.45 x 3.29
IP RatingIP66
Sub BrandQLine
Size160 x 120 mm
NEMA Rating4X Watertight, corrosion-resistant
