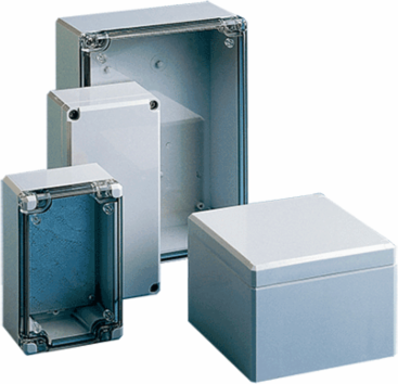

nVent Hoffman Q1689PCD Qline D, Type 4X - Q1689PCD
nVent Hoffman Q1689PCD Qline D, Type 4X - Q1689PCD
- MPN: Q1689PCD
- UPC: 783510138394
- PPN: HOF-Q1689PCD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$96.06/ EA
Description
QLine D polycarbonate and ABS enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
- Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Panel mounting feature on both body and cover
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Screws provided for mounting optional panel
- Material is halogen free
Specifications
Specifications
- Bulletin Number
- Q41
- Model Code
- 0.5
- Catalog Number
- Q1689PCD
- B in.
- 2.87
- K in.
- 0.59
- Panel Size D x E in.
- 5.16 x 2.56
- J in.
- 2.76
- P in.
- 2.28
- External Dimensions L x W in.
- 6.30 x 3.15
- Panel
- Q168PD
- Standards
- UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || CSA File No. 42186: Type 4, 4X, 6, 12, 13 || IEC 60529, IP67 || NEMA/EEMAC Type 4, 4X, 6, 12, 13 || IEC 60529, IP67
Material13839
Ship Wt. Std. Pkg. (lbs)False
A in.4.45
C in.3.11
F in.2.83
S in.5.35
Q in.4.80
Mounting G x H in.5.83 x 1.97
U in.0.12
Cover StyleOpaque
