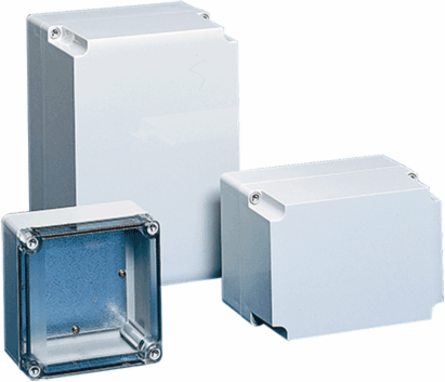

nVent Hoffman Q181310ABE Qline™ E, Type 4X - Q181310ABE
- MPN: Q181310ABE
- UPC: 783510141493
- PPN: HOF-Q181310ABE
CAD
$62.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Cover includes a molded-in wire lead hole
- Mounting tracks along body side walls for PC card installation
- Molded internal pads for mounting optional panels, rails and other components
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
Documentation & Downloads
Specifications
Additional
- Standards
- UL 508A Listed; Type 4, 4X, 6, 12, 13; cUL Listed per CSA C22.2 No 94; IEC 60529 IP67; NEMA/EEMAC Type 4, 4X, 6, 12, 13
- External Dimensions L x W in.
- 6.89 x 4.92 in.
- Seal Type
- Seamless foam-in-place gasket, watertight and dusttight
- Cover Screws Material
- Polyamide, cross-point flush
- Mounting
- Mounting tracks along body side walls; Molded internal pads for mounting optional panels, rails, components
- Model Code
- 1.0
- Panel Size D x E in.
- 5.83 x 3.86 in.
- F in.
- 3.39 in.
- B in.
- 4.67 in.
- Q in.
- 3.94 in.
- Mounting G x H in.
- 6.30 x 4.33 in.
- P in.
- 3.54 in.
Dimensions Internal (A x B x C)6.63 x 4.67 x 3.64 in.
MaterialImpact-resistant ABS
Cover StyleOpaque
Brass Inserts Thread SizeM2 internal machine screw thread, M4 self-tapping external thread
Catalog NumberQ181310ABE
Bulletin NumberQ41
PanelQ1813PE
A in.6.63 in.
K in.1.97 in.
S in.5.51 in.
C in.3.64 in.
