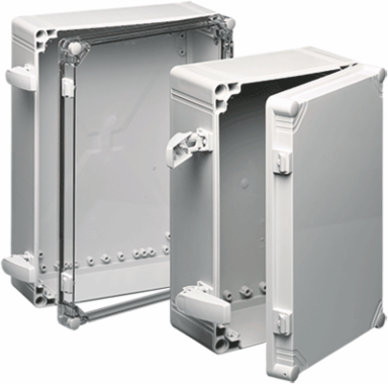

nVent Hoffman Q202013ABI Qline I, Type 4X - Q202013ABI
- MPN: Q202013ABI
- UPC: 783510144593
- PPN: HOF-Q202013ABI
CAD
$120.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- Q41
- Model Code
- False
- A in.
- 7.4
- C in.
- 4.84
- Panel Size D x E in.
- 6.30 x 6.30
- T in.
- 4.72
- Mounting G x H in.
- 7.09 x 7.09
- U in.
- 4.33
- Cover Type
- Screw Cover
- Cover Style
- Opaque
- Extension Ring
- Q2020EXTI
Material2.01
Catalog NumberQ202013ABI
B in.7.4
F in.4.53
R in.5.51
P in.5.91
Y in.3.94
PanelQ2020PI
Z in.3.94
External Dim's L x W in.7.87 x 7.87
StandardsUL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66
