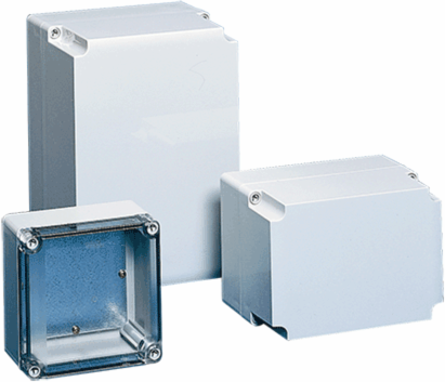

nVent Hoffman Q25188PCE Qline E, Type 4X - Q25188PCE

MPN: Q25188PCE
UPC: 783510143190
PPN: HOF-Q25188PCE

$193.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Qline™ E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller Qline products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Features

Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
Polycarbonate and ABS material is easily punched, drilled, filed or sawed
Cross-point flush cover screws are strong, durable polyamide
Cover includes a molded-in wire lead hole
Mounting tracks along body side walls for PC card installation
Molded internal pads for mounting optional panels, rails and other components
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Material is halogen free

Documentation & Downloads

Specifications

Key Specifications

Bulletin Number	Q41
Model Code	1.58
Catalog Number	Q25188PCE
B in.	6.63
K in.	0.98
Panel Size D x E in.	8.78 x 5.83
Q in.	7.95
Mounting G x H in.	9.25 x 6.30
Panel	Q2518PE
Standards	UL 508A Listed; Type 4, 4X, 6, 12, 13; File No. E61997 \|\| cUL Listed per CSA C22.2 No 94; Type 4, 4X, 6, 12, 13; File No. E61997 \|\| Enclosure flammability evaluated per UL 508A \|\| NEMA/EEMAC Type 4, 4X, 6, 12, 13 \|\| CSA File No. 42186: Type 4, 4X, 12, 13 \|\| IEC 60529, IP67 \|\| NEMA/EEMAC Type 4, 4X, 6, 12, 13 \|\| IEC 60529, IP67
