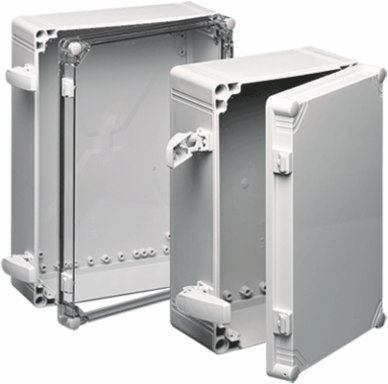

nVent Hoffman Q303013ABI Qline I, Type 4X - Q303013ABI
- MPN: Q303013ABI
- UPC: 783510146399
- PPN: HOF-Q303013ABI
CAD
$182.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
Documentation & Downloads
Specifications
Key Specifications
| Bulletin Number | Q41 |
|---|---|
| Model Code | 3.0 |
| Catalog Number | Q303013ABI |
| B in. | 11.34 |
| F in. | 4.53 |
| R in. | 9.45 |
| P in. | 9.84 |
| Y in. | 7.87 |
| Panel | Q3030PI |
| Z in. | 7.87 |
| External Dim's L x W in. | 11.81 x 11.81 |
| Standards | UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66 |
| Material | 14639 |
|---|---|
| Ship Wt. Std. Pkg. (lbs) | False |
| A in. | 11.34 |
| C in. | 4.84 |
| Panel Size D x E in. | 10.24 x 10.24 |
| T in. | 8.66 |
| Mounting G x H in. | 11.02 x 11.02 |
| U in. | 8.27 |
| Cover Type | Screw Cover |
| Cover Style | Opaque |
| Extension Ring | Q3030EXTI |
