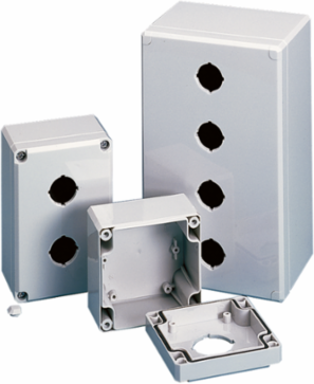

nVent Hoffman Q3PBPCD QLine D Pushbutton Enclosure Type 4X, 3PBx30.5mm, Light Gray, Polycarbonate
- MPN: Q3PBPCD
- UPC: 783510151591
- PPN: HOF-Q3PBPCD
- UNSPSC: 39121309
CAD
$124.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QLine D Pushbutton Enclosures are used for insulating and housing 30.5-mm or 22.5-mm pushbuttons. This QLine D Pushbutton Enclosure Type 4X, Q3PBPCD item measures 3PBx30.5mm with a material of Polycarbonate colored Lt Gray.
Features
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Screws provided for mounting optional panel
- Optional panels are unpainted plated steel
- Mounting hardware furnished
- Material is halogen free
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 120
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Gloss
- Color Code
- RAL 7035
- Mounting (G x H)
- 188 x 90
- IP Rating
- IP66
- Sub Brand
- QLine
- Size
- 200 x 120 mm
Height (H)200
Depth (D)79
Product FamilyQLine PushButton
ColorLight Gray
Thickness (T)3
NEMA Rating4X Watertight, corrosion-resistant
Weight0.9
MaterialPolycarbonate
