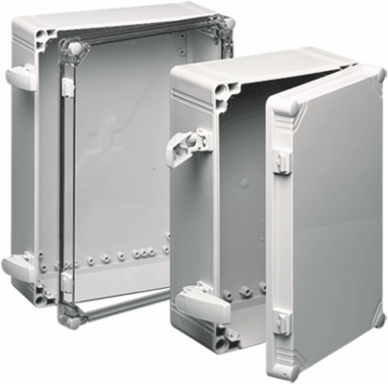

nVent Hoffman Q403013PCICC Qline I, Type 4X - Q403013PCICC
- MPN: Q403013PCICC
- UPC: 783510146795
- PPN: HOF-Q403013PCICC
CAD
$286.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI; opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws.
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision.
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- Q41
- Model Code
- 5.0
- Catalog Number
- Q403013PCICC
- B in.
- 11.34
- F in.
- 4.53
- R in.
- 9.45
- T in.
- 8.66
- P in.
- 9.84
- Y in.
- 7.87
- Panel
- Q4030PI
- Z in.
- 11.81
- External Dim's L x W in.
- 15.75 x 11.81
- Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66 || NEMA/EEMAC Type 4, 4X, 12, 13 || IEC 60529, IP66
Material14679
Ship Wt. Std. Pkg. (lbs)False
A in.15.28
C in.4.84
Panel Size D x E in.14.17 x 10.24
S in.13.39
Q in.13.78
Mounting G x H in.14.96 x 11.02
U in.12.20
Cover TypeScrew Cover
Cover StyleClear
Extension RingQ4030EXTI
