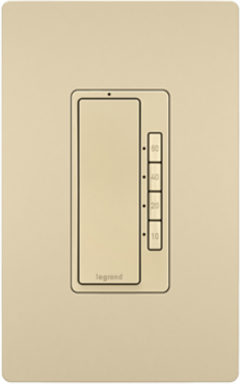

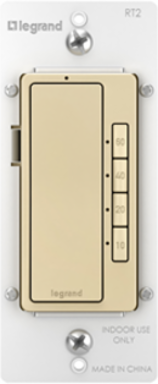

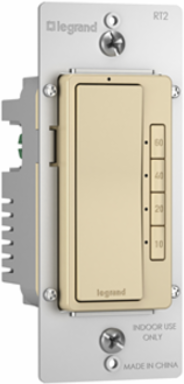

Radiant RT2I 4-Button Digital Timer, Ivory, 3.281 Inch Height, UL Listed
- MPN: RT2I
- UPC: 785007034400
- PPN: P-S-RT2I
CAD
$52.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.This timer controls most types of lighting and features 4-button preset countdown delays in 60-, 40-, 20- and 10-minute intervals with visual indication, turning loads off when no longer needed. radiant® Screwless Wall Plate not included.
Features
- Offers automated control of lights, fans, and motor loads, reducing energy waste and lowering costs.
- Four preset countdown times of 60, 40, 20, 10 minutes.
- Manual ON/OFF paddle control.
- White LED glows when OFF for easy location in the dark.
- Supported load types: 0-800 VA E-Ballast, MLV, ELV, CFL, LED Drivers, fluorescent or incandescent, 1/6 hp
- Visual LED indicator light will move to next lowest indicator as the timer counts down.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Buy American Act Compliance
| Country Of Origin | CHINA |
|---|
Technical Information
| Volts | 120 |
|---|
| Watts | 600 |
|---|
Dimensions
| Depth (US) | 1.88" |
|---|---|
| Width (US) | 1.69" |
| Height (US) | 3.281" |
|---|
Construction Information
| Component 4 | 78500703439 |
|---|
General Info
| Color | Ivory |
|---|---|
| Style | Rocker |
| Type | 5-Button Digital Timer |
|---|
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|
| cULus | Yes |
|---|
