Leviton DT160-1LW Decora 60-Minute Countdown Timer Switch, 15A, ½ HP, Single Pole
- MPN: DT160-1LW
- UPC: 078477264287
- PPN: LEV-DT160-1LW
CAD
$58.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

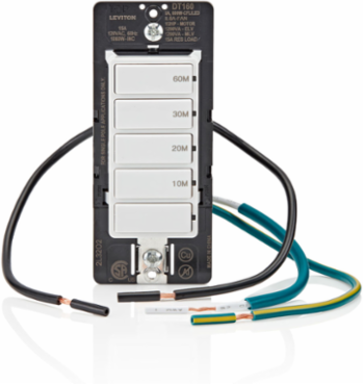

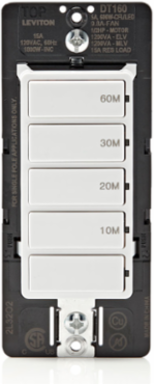

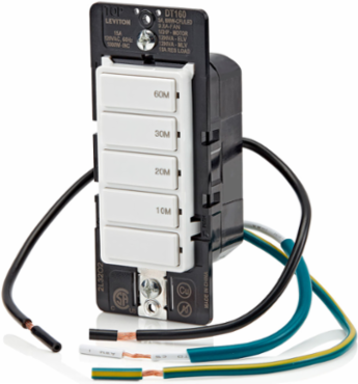

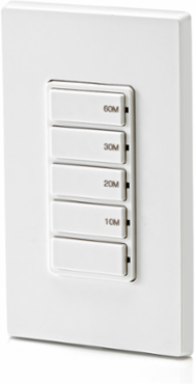

The Decora 60-Minute Countdown Timer Switch has 5 buttons with 10-minute, 20-minute, 30-minute and 60-minute preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White
Features

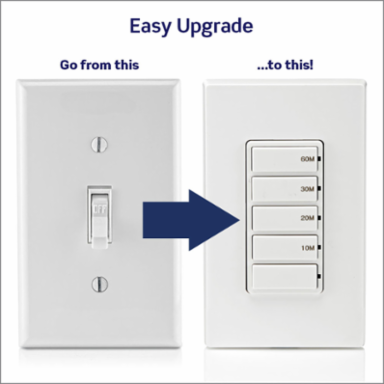

- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 10-20-30-60 min with separate off button. Press time option to turn on and will automatically turn off when time expires
- 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive

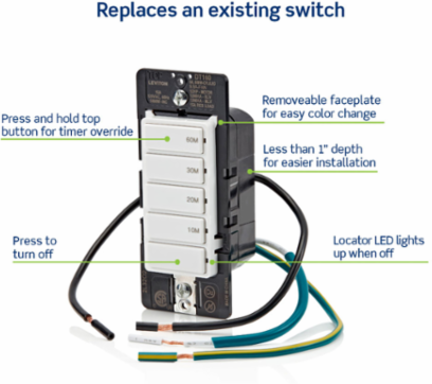

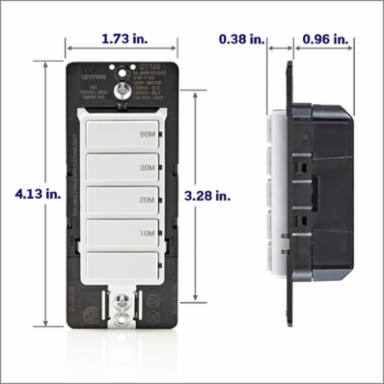

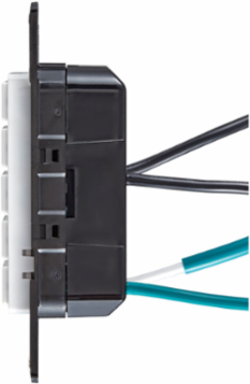

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

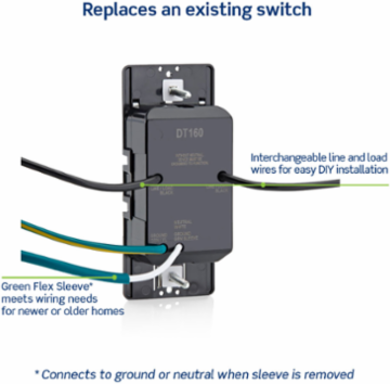

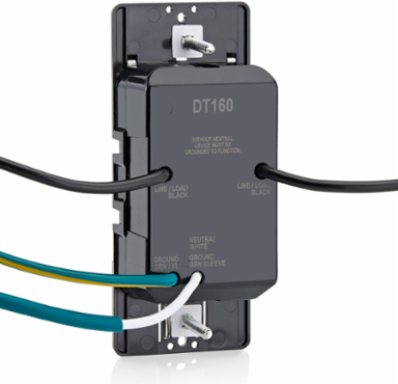

- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
- DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Zero Cross turn-on technology to extend the life of the switch
- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

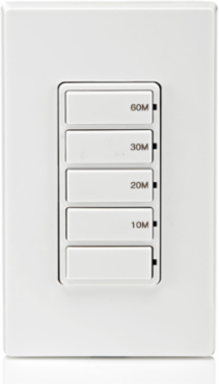

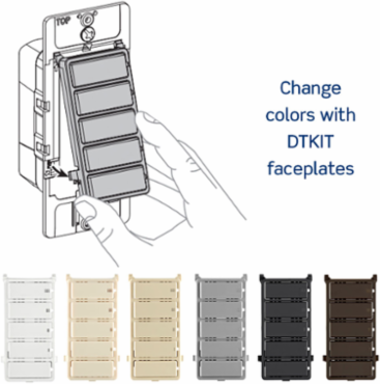

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for bathroom exhaust fans, heat lamps, towel warmers, garages, attics, basements and more
- Do not use to control lights if there is no other light source in the space
- CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
- EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
- ENERGY SAVING – ensure lights and fans are not left on unintentionally
- PRACTICAL – for bathroom exhaust fans, lights, heat lamps, towel warmers, attics, garages, basements
- STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Additional
- Timer Type
- 60-Minute Countdown
- Horsepower
- 1/2 HP
- Voltage
- 120 VAC
- Mounting Type
- In-Wall
- Grounding
- Yes (Neutral or Earth Ground)
- Operating Temperature
- 0°C to 40°C
- Relative Humidity
- 0% to 90% non-condensing
- RoHS Compliant
- False
- Compatible Bulb Type
- LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Fluorescent, Fan, Motor
- Faceplate Colors
- White, Ivory, Light Almond, Gray, Black, Brown
- Country of Origin
- China
- Timer Options
- 10 min, 20 min, 30 min, 60 min
- Grade
- Residential
Amperage15 A
Load Rating600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic/Electronic Low Voltage, 1200VA Fluorescent, 1/2 HP Motor (9.8A Fan/Motor), 15A Resistive

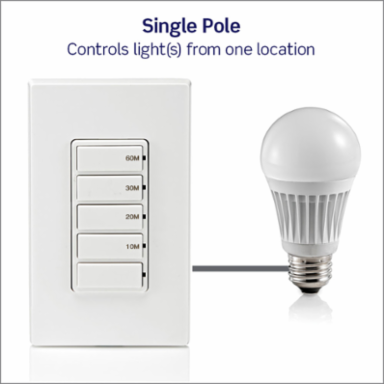

FunctionSingle-Pole (SP)
TerminationLeads
Power Consumption<1 Watt
Storage Temperature-20°C to 60°C
Standards and CertificationsCSA, FCC, IC, cCSAus Certified
Device TypeTimer Switch
ColorWhite
Optional FaceplatesDTKIT
StylePush Button
Warranty5-Year
