Leviton DT130-1LW Decora Countdown Timer Switch, 30-Minute, 15A, ½ HP, In-Wall
Leviton DT130-1LW Decora Countdown Timer Switch, 30-Minute, 15A, ½ HP, In-Wall
- MPN: DT130-1LW
- UPC: 078477264270
- PPN: LEV-DT130-1LW
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$48.55/ EA
Description

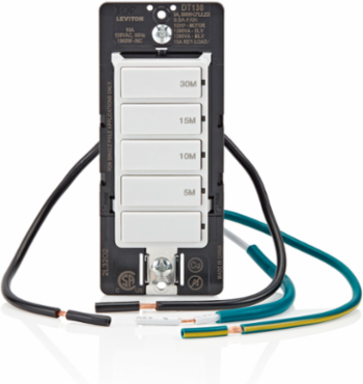

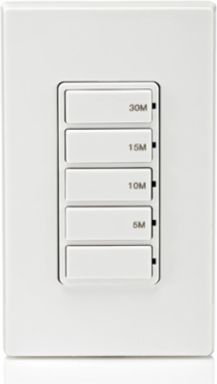

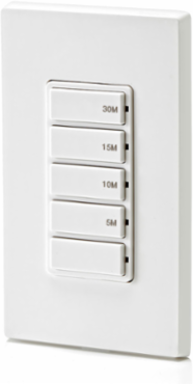

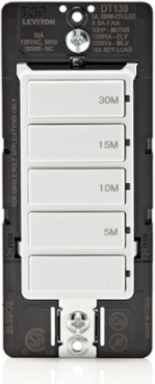

The Decora 30-Minute Countdown Timer Switch has 5 buttons with 5-minute, 10-minute, 15-minute and 30-minute preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White
Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 5-10-15-30 min with separate off button. Press time option to turn on and will automatically turn off when time expires
- 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive

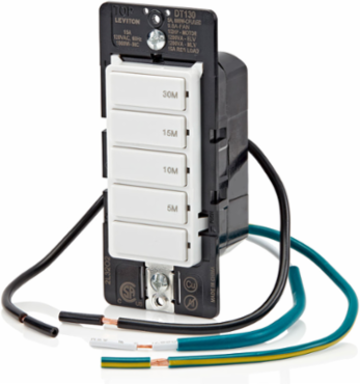

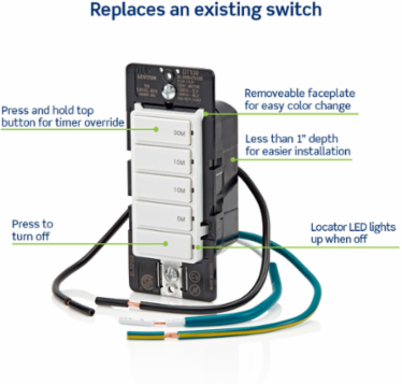

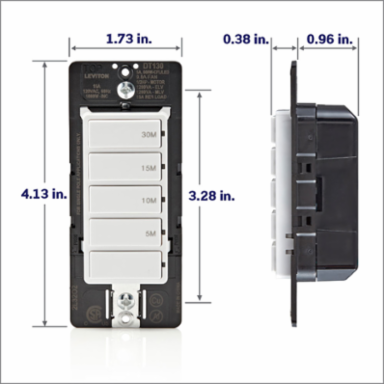

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

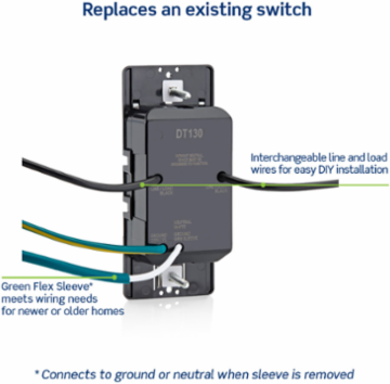

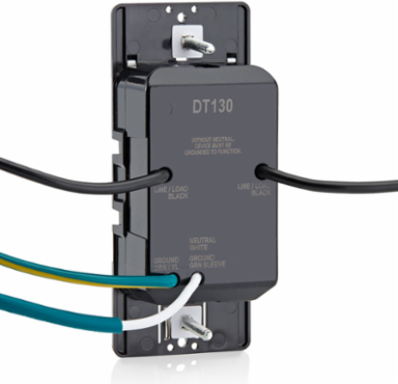

- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
- DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Zero Cross turn-on technology to extend the life of the switch
- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

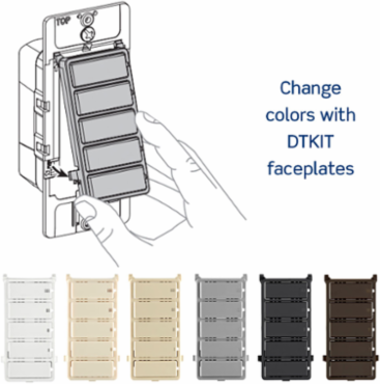

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for bathroom exhaust fans, heat lamps, towel warmers, garages, attics, basements and more
- Do not use to control lights if there is no other light source in the space

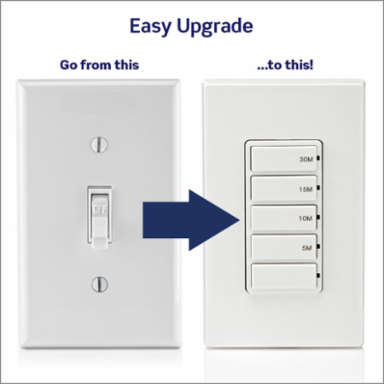

- CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
- EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
- ENERGY SAVING – ensure lights and fans are not left on unintentionally
- PRACTICAL – for bathroom exhaust fans, lights, heat lamps, towel warmers, attics, garages, basements
- STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Specifications
- Voltage
- 120 VAC, 60 Hz
- Wattage Rating
- 600W | 1800W | 1200VA
- Timer Type
- Countdown
- Compatible Bulb Type
- LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Fluorescent, Fan, Motor
- Mounting Type
- In-Wall
- Neutral Required
- Optional
- Faceplate Color
- White
- Termination
- Leads
- Standards and Certifications
- CSA, FCC, IC, cCSAus Certified
- Storage Temperature Range
- -20°C to 60°C
- Country of Origin
- China
- Wallplate
- Not Included
- Style
- Push Button
Amperage15 A
Horsepower Rating1/2 HP
Preset Time Options5, 10, 15, 30 minutes

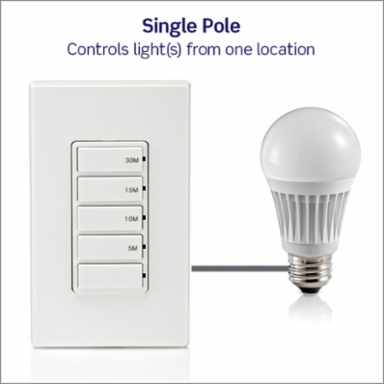

FunctionSingle-Pole (SP)
GroundingYes
ColorWhite
Power Consumption<1 Watt
GradeResidential
Operating Temperature Range0°C to 40°C
Relative Humidity0% to 90% non-condensing
BrandDecora
Optional FaceplatesDTKIT
