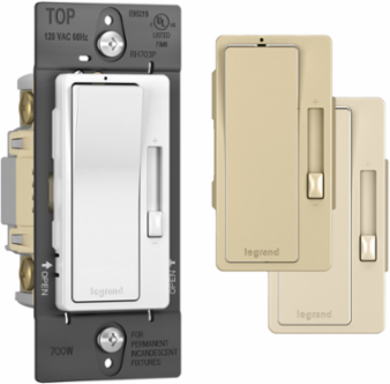

Radiant RH703PTC radiant® Incandescent 700W 3-Way Dimmer, Tri-Color
- MPN: RH703PTC
- UPC: 785007053289
- PPN: P-S-RH703PTC
CAD
$41.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Upgrade your space with precise dimming control and exceptional style. This dimmer from the radiant® Collection is optimized for use with incandescent bulbs and fixtures. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features

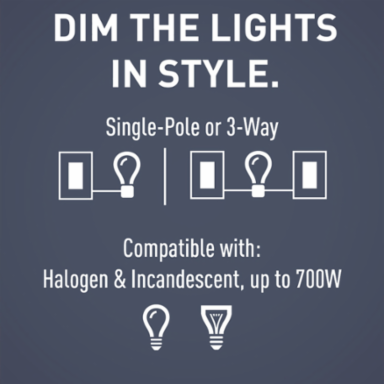

- For use with incandescent bulbs and fixtures on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
- Screw pressure plate back wire allows easier installation and fit into the wall box
- Eliminates the need to derate LED bulbs when in multi-gang situations
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Height
- 4.25 in
- Width
- 1.75 in
- Amperage
- 15.0 A
- Wattage
- 700.0 W
- Standard
- UL Listed
- Number of Gangs
- 1.0
- Supply Voltage
- 120.0
- Number of Poles
- 3-Way
- Wire Size
- #14 - #10 AWG
- Connection
- Screw Terminals
- Application Sector
- Residential
- Special Features
- The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
- Jigsaw Channel Availability
- Distribution
- Color
- Ivory,Light Almond,White
- Material
- Polycarbonate
TypeDimmer
StandardcULus
Country of OriginChina
Voltage120.0 V
Mounting TypeBox
Switch TypePaddle
StandardCSA Listed
Indoor/OutdoorIndoor
Number of Switches1.0
Compatible Add-OnsRHKIT
Number of PolesSingle Pole
Bulb CompatibilityIncandescent
Warranty TypeLimited Lifetime Warranty
Environmental Conditions95% (relative humidity, non-condensing)
FinishMatte
Product LinePass & Seymour
