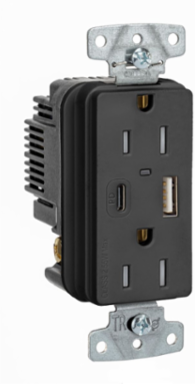

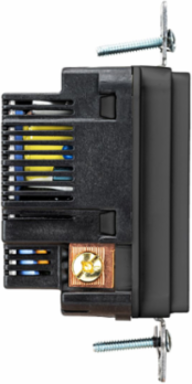

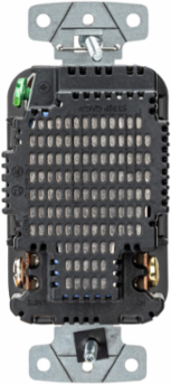

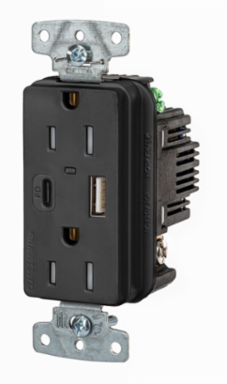

Hubbell Wiring Device-Kellems USB15ACPDBK USB Outlet 2-Pole 3-Wire, NEMA 5-15R, 55W, Black
- MPN: USB15ACPDBK
- UPC: 783585565903
- PPN: HBL-USB15ACPDBK
- UNSPSC: 39121406
CAD
$86.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USBC Outlet: 2-Pole, 3-Wire, Type C PD & Type A 5V, Tamper-Resistant
Features
- High Power Delivery:55 Watt USB Power Delivery 3.0, 5 Volt USB BC1.2 Output
- Versatile Combination Ports:One Type A, One Power Delivery Type C
- Tamper-Resistant Design:Commercial grade, duplex compatible
- Durable USB Ports:Rated for 10,000 cycles.
- Maximize charging efficiency with Hubbell's Power Delivery USB Chargers, featuring high-powered USBC outlets that can simultaneously charge a laptop and a phone with a 55 Watt, 20 Volt DC output.
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 2.050 in |
| Color | Black |
| Number of Poles | 2-Pole |
| Special Features | Maximize charging efficiency with Hubbell's Power Delivery USB Chargers, featuring high-powered USBC outlets that can simultaneously charge a laptop and a phone with a 55 Watt, 20 Volt DC output. |
| Type | Tamper Resistant USB |
| General Literature Asset 1 Display Text | USB Power Delivery Receptacles |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Harmonization Code | 8536698000 |
| Sub Class Code | A04A062 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 50.000 in |
| Pallet Weight | 1384.000 lb. |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 15 A |
|---|---|
| Industry Standard(s) | NEMA 5-15R, USB PD 3.0, USB BC1.2 |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Standard | NEMA 5-15R, USB PD 3.0, USB BC1.2 |
| Voltage Rating | 125 V |
| General Literature Asset 2 Display Text | FREQUENTLY ANSWERED QUESTIONSUSB-C Power Delivery Receptacles |
| Number Of Poles | 2-Pole |
| Style | Style Line Decorator |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Series | USB Charger |
| BOX SIZE | 4.100x11.000x4.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585565903 |
| Case Weight | 22.400 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
